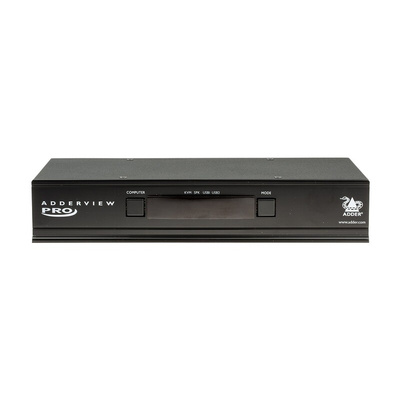

AV4PRO-DVI-UK, Adder 4 Port USB DVI KVM Switch

Adder KVM Switch

The Adder View 4 PRO DVI KVM switch is designed to enable four computers to be controlled from a single high-resolution KVM console using either dual-link DVI or high definition analogue video links. This switch makes use of True Emulation technology that enables USB HID devices to be continuously emulated to each computer. This unique technology enables instantaneous and reliable hotkey switching, whilst also supporting the extra keys and the features of enhanced keyboards and mice. It includes two independently switchable USB 2.0 channels and an audio channel, giving the user the flexibility to attach selected peripherals to different computers.
Supplied with:
2.5mm DC jack

Features and Benefits

Broad USB 2.0 Hi-Speed device support
Channel selection options
Dual link DVI-I with extended profile DDC EDID
High resolution video
Independent simultaneous device selection
Input to power adapter ranging between 100VAC and 240VAC, 50/60Hz
Options port for control, synchronisation and upgrade
Output from power adapter is 5VDC, 2A
Operating temperature ranging between 0°C and 40°C

Certifications

CE certified
FCC certified

Datasheet
