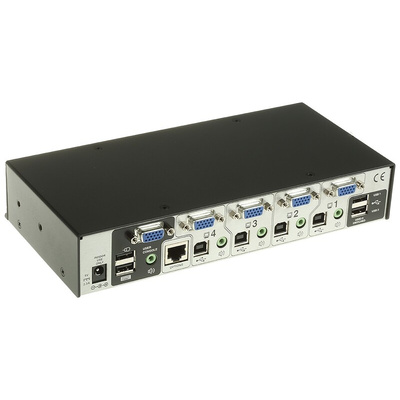

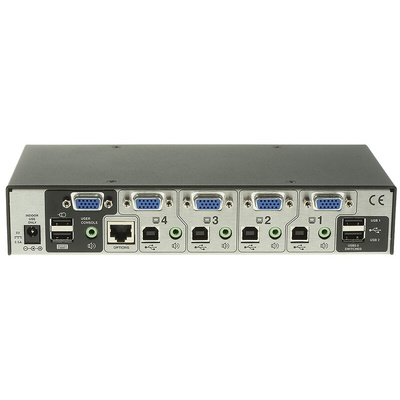

AV4PRO-VGA-UK, Adder 4 Port USB VGA KVM Switch - 3.5 mm Stereo

AdderView Pro VGA

The AV4PRO-VGA is designed to enable four computers to be controlled from a single high resolution KVM console using high definition analogue VGA video links.The switch makes use of Adder’s True Emulation technology which enables USB HID devices to be continuously emulated to each computer. This unique technology enables instantaneous and reliable hotkey switching whilst also supporting the extra keys and features of enhanced keyboards and mice. Furthermore, the AdderView includes two independently switchable USB 2.0 channels and an audio channel, giving the user the flexibility to attach selected peripherals to different computers.

High Definition VGA with extended profile DDC EDID
True Emulation USB2.0 technology
Independent simultaneous device selection
Channel selection options
Broad USB 2.0 Hi Speed device support
Options port for control, synchronisation and upgrade
2.5mm DC jack (power adapter included)
100-240Vac 50/60Hz input to power adapter
5Vdc 2A output from power adapter

Approvals

CE, FCC

Approvals

CE, FCC
