RS PRO 14 bar Iron Float & Thermostatic Steam Trap, 1/2 in BSP Female, Конденсатоотводчик

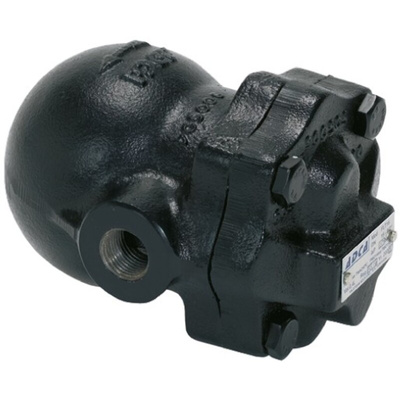

RS PRO 14 Bar Iron Float and Thermostatic Steam Trap, 1/2 in BSP Female

This float and thermostatic steam trap from our trusted RS PRO range uses a temperature sensing element to activate the release of condensate from your steam system. You can use this versatile component for a range of low, medium and high-pressure steam heating applications, including driers, unit heaters and heat exchangers.


For strength as well as resistance to impact and high temperatures, the unit has a spheroidal graphite (SG) iron body and stainless-steel inner components. It's safe to use as it's designed to withstand unexpected load and pressure changes. It also has a thermostatic air vent to ensure efficient discharge of air.


This product has female threaded connections that adhere to BSP (British Standard Pipe) requirements, ensuring the highest quality technical standards for sealing pipes and fittings. It's suitable for use in systems with high pressures of up to 14 bar.

Features and Benefits

• Iron body material


• Female connection gender


• Connection size of 1/2 in BSP


• Maximum temperature of +198°C


• Maximum working pressure of 14 bar


• Horizontal and vertical orientation


• British Standard Pipe (BSP) thread type


• Float and thermostatic trap type

FLT16 FLOAT AND THERMOSTATIC STEAM TRAPS Data Sheet
