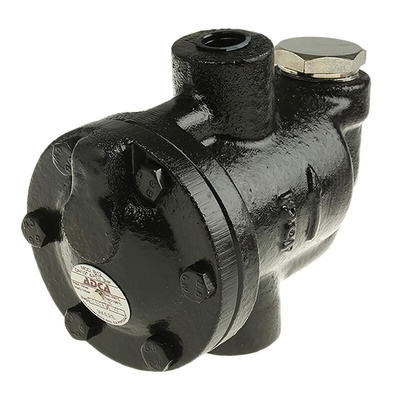

Valsteam ADCA 8 bar Iron Inverted Bucket Steam Trap, 1/2 in BSP Female, Конденсатоотводчик

RS Pro Inverted Bucket Steam Trap IB12

These inverted bucket steam traps are recommended when the most important requirements are overall operating efficiency and trouble free service life. They are best suited for service at medium and high steam pressure due to operating intermittently, either wide open or tightly closed.

Features and Benefits

Connections are female screw
Horizontal installation
Intermittent discharge
Discharges condensate at steam temperature
Unaffected by water hammer and vibrations
Easy to maintain
Built-in strainer

Iron Steam Traps

All units PN16 with Stainless Steel internal parts and Reinforced Exfoliated Graphite gaskets, Straight Orientation; Maximum Operating Pressure - 14bar g; Maximum Allowable Pressure - 16 bar g; Maximum Cold Hydraulic Test Pressure - 24bar g; Cover Bolts Material - BS 3692 Gr.10 Steel;
