4725013, Lapp ÖLFLEX® H05Z-K 90° Series Black 1 mm² Hook Up Wire, 17 AWG, 100m, Кабель

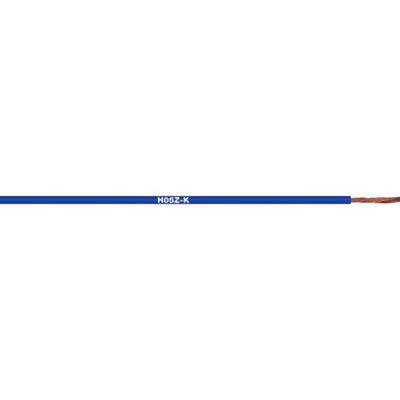

Low Smoke Halogen Free Single Core Cable - H05Z-K

From Lapp, this low smoke zero halogen cable is designed for use in internal wiring. The single core harmonized cable can be used to wire appliances and fittings, and is also ideal for installation in conduits and sealed trunking.

As it is low smoke zero halogen (LSZH) it is suitable for environments where the protection of people and equipment is paramount. In the event of a fire, this wire will release far less smoke and no harmful halogens when burning compared to non-LSZH wiring.

With a fine copper wire construction, the wire also features a halogen free core. The cable is also certified, meaning it is suitable for use in most European machinery.

Features and Benefits

• LSZH
• H05Z-K at 90°C
• Harmonized (HAR)
• Flame retardant in accordance to IEC 60332-2-2
• Smoke density in accordance to IEC 61034
• Halogen free in accordance to IEC 60754-1
• Operating Temperature of Temperature range -15°C → +90°C

Applications

Lapp LSZH wire releases less toxic and corrosive gases into an environment when burning, which is essential for areas with low ventilation, such as aircraft and off-shore installations. It is also often used in;

• Underground Railway
• Ships
• Power Plants and Nuclear Facilities

The H05Z-K cable must be used in dry rooms, and can installed in tubes under plaster and in installed installation ducts. It is often used in;

• Control Cabinets
• Switchgear Cabinets
• Distribution Boxes

Accessories

For proper termination and management in control cabinets and conduit, this wire can be used with cable accessories and Lapp cable glands. For example, the easy-fit SKINTOP CLICK range of cable glands can accommodate various wire gauges.

• 104-004 is a grey M16 SKINTOP CLICK Cable Gland for 4.5 mm to 10 mm wire diameters
• 104-010 is a grey M20 SKINTOP CLICK Cable Gland for 7 mm to 13 mm wire diameters
• 103-994 is a grey M25 SKINTOP CLICK Cable Gland for 9 mm to 17 mm wire diameters
• 560-707 is a grey M12 SKINTOP CLICK Cable Gland for 3 mm to 7 mm wire diameters
• 560-688 is a black M32 SKINTOP CLICK Cable Gland for 11 mm to 21 mm wire diameters

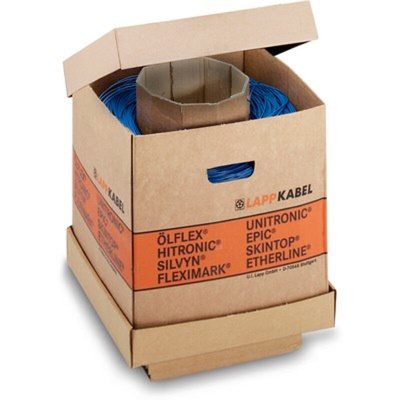

LAPP ÖLFLEX® H05Z-K 90° Series Hook Up Wire, Copper, 100m Long - 4725013

This LAPP hook up wire is designed for use in automation, electronics, electrical, and mechanical industries. With a 1mm² cross-sectional area and a single core design, this wire is perfect for wiring lamps, devices, switchgear cabinets, and distribution boxes. The wire is CPR ECA certified, ensuring maximum safety and protection. The black sheath and copper conductor make it a reliable choice for a variety of applications.

Features & Benefits

• CPR ECA certified for enhanced safety standards
• Halogen-free construction to protect human life and the environment
• Single core design for easy installation and time-saving assembly
• Copper conductor ensures high conductivity and reliability
• 1 mm² cross sectional area for optimal performance
• Black sheath colour for easy identification and sleek appearance
• 17 AWG single core wire style for consistent performance
• Voltage rating of 500 V for versatile use in different applications

Applications

• Ideal for wiring lamps, devices, switchgear cabinets, and distribution boxes
• Suitable for installation in tubes, on, in, and under plaster, as well as in closed installation ducts
• Perfect for use in buildings with a high density of people or valuable assets
• Great for use in dry rooms with expanded ambient temperatures

Can it be used for wiring devices other than lamps?

Yes, this wire is suitable for a variety of applications, including wiring devices other than lamps.

Will it fit in tubes and plaster installations?

Yes, this wire is designed to be flexible and suitable for installation in tubes, on, in, and under plaster.

Is the wire suitable for use in high-density areas?

Yes, this wire is perfect for use in buildings with a high density of people or valuable assets.

Can it withstand a wide range of temperatures?

Yes, this wire has a temperature range of -15°C to +90°C, making it suitable for various environments.

Is the black sheath colour durable?

Yes, the black sheath provides protection and durability to the wire for long-lasting performance.
