4726002, Lapp ÖLFLEX® H07Z-K 90° Series Green/Yellow 2.5 mm² Hook Up Wire, 13 AWG, 100m, Кабель

Low Smoke Halogen Free Single Core Cable - H07Z-K

From Lapp, this low smoke zero halogen cable is designed for use in internal wiring. The single core harmonized cable can be used to wire appliances and fittings, and is also ideal for installation in conduits and sealed trunking.

As it is low smoke zero halogen (LSZH) it is suitable for environments where the protection of people and equipment is paramount. In the event of a fire, this wire will release far less smoke and no harmful halogens when burning compared to non-LSZH wiring.

With a fine copper wire construction, the wire also features a halogen free core. The cable is also certified, meaning it is suitable for use in most European machinery.

Features and Benefits

• LSZH
• H07Z-K 90°C
• Harmonized (HAR)
• Flame retardant in accordance to IEC 60332-2-2
• Smoke density in accordance to IEC 61034
• Halogen free in accordance to IEC 60754-1
• Operating Temperature of Temperature range -15°C → +90°C

Applications

Lapp LSZH wire releases less toxic and corrosive gases into an environment when burning, which is essential for areas with low ventilation, such as aircraft and off-shore installations. It is also often used in;

• Underground Railway
• Ships
• Power Plants and Nuclear Facilities

The H05Z-K cable must be used in dry rooms, and can installed in tubes under plaster and in installed installation ducts. It is often used in;

• Control Cabinets
• Switchgear Cabinets
• Distribution Boxes

Accessories

For proper termination and management in control cabinets and conduit, this wire can be used with cable accessories and Lapp cable glands. For example, the easy-fit SKINTOP CLICK range of cable glands can accommodate various wire gauges.

• 104-004 is a grey M16 SKINTOP CLICK Cable Gland for 4.5 mm to 10 mm wire diameters
• 104-010 is a grey M20 SKINTOP CLICK Cable Gland for 7 mm to 13 mm wire diameters
• 103-994 is a grey M25 SKINTOP CLICK Cable Gland for 9 mm to 17 mm wire diameters
• 560-707 is a grey M12 SKINTOP CLICK Cable Gland for 3 mm to 7 mm wire diameters
• 560-688 is a black M32 SKINTOP CLICK Cable Gland for 11 mm to 21 mm wire diameters

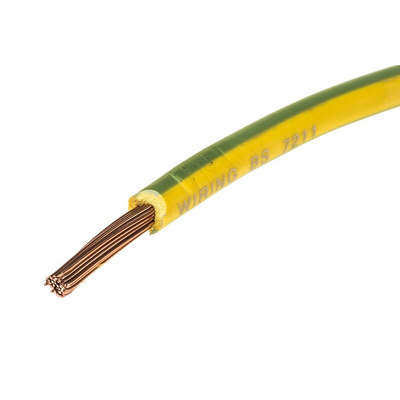

LAPP Hook Up Wire, 2.5mm² CSA, Single Core - 4726002

When you need to wire low-voltage and low-current applications internally, opt for this hook up wire from LAPP. You can quickly identify it in busy setups thanks to its green and yellow sheath. As the sheathing has LSZH fire behaviour, you can rest assured it releases minimal smoke and no harmful halogens in the event of a fire. This makes the cable a safe option for potentially hazardous workplaces and public buildings.

Features & Benefits

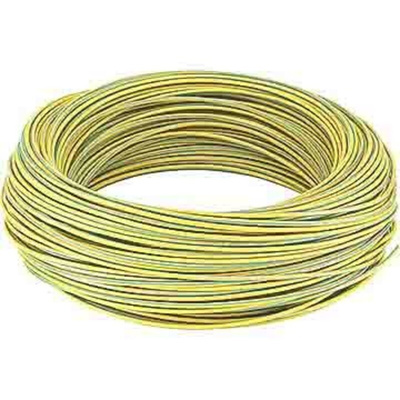

• 100m length, so you can install a long run or cut it to the size you need
• 13AWG size for easy compatibility with small devices

Applications

• Plugs and sockets
• Office computer equipment

What's the voltage rating of this hook up wire?

This hook up wire has a voltage rating of 750V.

What does H07Z-K mean?

H07Z-K cables like this one comply with international standards. The code means this is a harmonised cable that's flame-retardant and flexible.
