15500203, Lapp 4 Core Power Cable, 4 mm², 50m, Black PVC Sheath, NYY-J, 34 A, 1 kV, 600 V

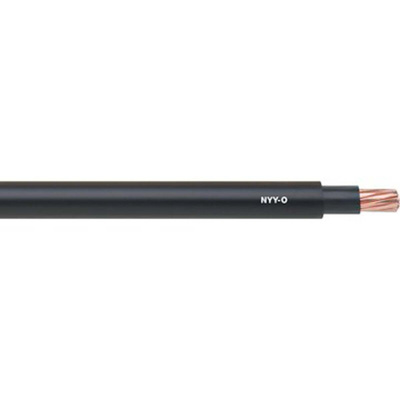

Lapp Fixed Installation Power Cable - NYY-J

From Lapp, this NYY-J cable is a widely-used power and control cable that is often found in domestic and commercial electrical wiring. As well as being used in fixed installations, the cable is designed to be used for direct burial, and burial in concrete, providing the operating temperature is adhered to.

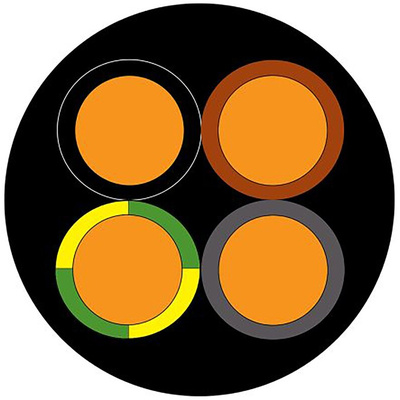

The cable is bare copper single core with PVC with a filling compounds over the core assembly. The PVC sheath is flame retardant and robust, allowing the cable to be used in dry, damp and wet interiors. NYY-J cable is also able very resistant to UV, and so is able to be used outdoors.

Features and Benefits

• Bare copper conductors
• PVC-based outer sheath
• Suitable for outdoor use
• Flame-retardant according IEC 60332-1-2
• Above, below, flush and recess routing
• Operating temperature during installation: -5°C to +50°C
• Operating temperature in a fixed installation: -40°C to +70°C

Applications

Able to be installed in open air and underground, NYY-J cable presents a versatile power cable that should be used in where the risk of mechanical damage is unlikely. As such it can be used in brickwork and concrete, proving the concrete is not shaken, vibrated or compressed. Lapp NYY-J able is often used in;

• Power stations
• Distributor boards
• Subscriber networks

LAPP NYY-J Series Power Cable, Bare Copper Conductor, 50m Length - 15500203

This power cable from LAPP, with an 11 AWG copper conductor, is a reliable and robust solution. It is flame retardant, solid core, PVC insulated, with a 4mm² conductor and a 1kV voltage rating. Designed with precision and expertise, this cable meets ECA CPR certification standards to ensure safety and quality in various applications.

Features & Benefits

• Flame retardant properties ensure safety in different environments
• Solid core construction provides durability and reliability
• PVC insulation offers excellent protection
• 4mm² conductor size allows for efficient power transmission
• 1kV voltage rating suitable for a wide range of applications
• Ideal for use in water environments, offering reliable performance
• Suitable for direct burial applications, ensuring longevity
• Used for power and control in static installations, indoors, outdoors, and underground

Applications

• Ideal for use in water environments, offering reliable performance
• Suitable for direct burial applications, ensuring longevity
• Perfect for automation, electronics, electrical, and mechanical industries
• Used for power and control in static installations, indoors, outdoors, and underground

Can it withstand high temperatures?

The cable is designed to operate at temperatures ranging from -40°C to +70°C, making it versatile for various conditions.

Will it provide reliable power transmission?

Yes, the 11 AWG copper conductor ensures efficient power delivery with minimal resistance.

Is it suitable for outdoor use?

Yes, the cable is designed for use both indoors and outdoors, making it a versatile solution for different applications.

Can it be buried directly into the ground?

Yes, the cable is designed for direct burial applications, ensuring reliable power transmission.
