RS PRO 14 → 24 (Fluorescent) W, 18 → 24 (CFL) W Electronic Compact Fluorescent Lighting Ballast, 220, Электронный балласт

RS PRO 14 → 24 (Fluorescent) W, 18 → 24 (CFL) W Electronic Compact Fluorescent Lighting Ballast, 220

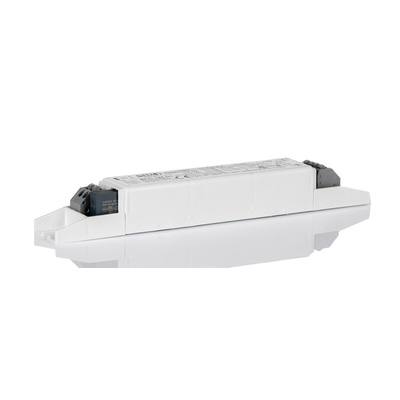

This compact matchbox electronic lighting ballast from RS PRO will safely start and control your fluorescent lamps. It cleverly stops fluorescent tubes from overheating and burning out, providing reliable protection.

This product comes with dimensions of (L) 150 mm, x (W) 22 mm, x (H) 19 mm, so it's suitable for compact fluorescent tubes. It preheats the lamp so as to increase its life expectancy, and provides excellent protection in case of disconnection of the lamp or lamp failure.

Our ballast can be easily secured in place with screws. It's useable for lighting equipment in protection Class I and II.

This product has versatile applications, and it's suitable for use in homes and businesses, from offices to garages. It meets RoHS (Restriction of Hazardous Substances) standards, meaning it contains only trace amounts of hazardous materials.

Features and Benefits

• Compact fluorescent lamp
• Wattage of one 14 to 18 W fluorescent bulb, or one 18 to 24 W CFL (compact fluorescent light)
• One lamp
• Electronic supported ballast
• Lamp shape of T-R5, T5, T8, TC-F or TC-L
• Voltage rating of 220 to 240 V
• Non-dimmable
• High-frequency
• Dimensions of (L) 150 mm, x (W) 22 mm, x (H) 19 mm
• Operating temperature range of -15°C to +55°C
• EU energy efficiency rating of A2
• EN 61000-3-2, EN 61547, EN 55015, EN 61347-2-3, EN 60598-2-22 compliant for safety
• RoHS compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
