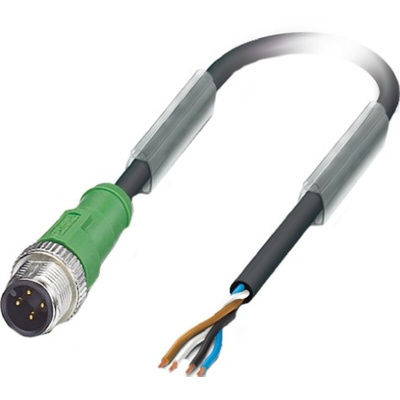

1668043, Phoenix Contact Straight Male 4 way M12 to Unterminated Sensor Actuator Cable, 1.5m, Кабельная сборка

Phoenix Contact Sensor Actuator Cable, A Coding, 250V Voltage Rating - SAC-4P-M12MS/1,5-PUR - 1668043

Are harsh conditions putting your network under strain? Toughen up your sensor and actuator connections with this cable from Phoenix Contact. The polyurethane jacket is resistant to oils, alkalis and acids as well as solvents, moisture and microbes. A layer of thermoplastic polypropylene protects and insulates each wire. These conductors are twisted together to reduce noise and keep the cable flexible. A bend radius between 23.5 and 47mm and a lifespan of 4,000,000 cycles means the cable's routable through conduits and handy for flexible and fixed installations.
The unit's threaded connector locks into sockets to prevent accidental disconnections caused by snags. It won't wear out if you change your setup regularly as it's durable for at least 100 plugging cycles. Once hooked up, the assembly has an IP69K rating so you can be sure dust stays out and powerful, high-temperature water jets won't bother it. Use this rugged cable with automated machines in manufacturing, food processing and packaging systems.

Features & Benefits

• Wide operating temperature range between -25°C and +90°C, to handle harsh conditions
• Colour-coded conductors for error-free wiring
• Paintable jacket for customising connections
• Free of halogen and silicone to boost fire safety
• A-coded to universally fit sensor and actuator connections

Phoenix Contact - PLUSCON field

SAC-4P-M12MS/ 1,5-PUR

Instruction Sheet - SAC Series

Line Drawing - 1668043
