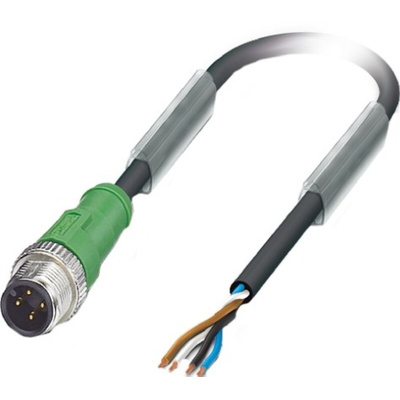

1668056, Phoenix Contact Male 4 way M12 to Sensor Actuator Cable, 3m, Кабельная сборка

M12 Plug with free conductor end

S & T Coded M12 Power Connectors and Cable Assemblies provide a robust watertight connection for high power in AC or DC voltages. Both versions are coded to prevent mis-mating with signal connectors and connectors with differing voltages. Available with PCB connectors, cable connectors and single ended cable assemblies.

Sensor/ actuator cable (SAC)
With straight M12 plug and free conductor end
Completely assembled
A-coded

Phoenix Contact Sensor Cable Assembly, 4 Pin, 3m - SAC-4P-M12MS/3.0-PUR - 1668056

Use this Phoenix Contact cable assembly when you need to transmit power from a sensor or a power supply to an actuator. It bundles wires together to provide a more efficient and reliable organisation for your workspace.
The cable's four-pin plug offers a robust, watertight connection and the M12 size makes it compatible with industry-standard fittings. This means you can readily integrate it into your existing setup. It's easy to install and remove, with no tooling required.
The assembly's contacts are made from copper-plated tin, offering excellent conductivity for an efficient connection. This material is also corrosion-resistant, contributing to the unit's long service life. The cable sheath is made from durable thermoplastic polyurethane (TPU), giving it high strength and protection against abrasion. It's also one of the least flammable thermoplastics, so it's a fire-safe option for your workplace.

• Cable length of 3 metres
• Male connection gender
• Straight orientation
• Halogen-free
• Black, brown, blue and white wire colours
• Nickel and gold contact surface material
• Operating temperature range of -25°C to +90°C

Phoenix Contact - PLUSCON field

SAC-4P-M12MS/ 3,0-PUR

Catalogue - M5 to M12 circular connectors

Declaration Of Conformity

Declaration Of Conformity
