1669783, Phoenix Contact Male 5 way M12 to Unterminated Sensor Actuator Cable, 5m, Кабельная сборка

M12 Plug with free conductor end

S & T Coded M12 Power Connectors and Cable Assemblies provide a robust watertight connection for high power in AC or DC voltages. Both versions are coded to prevent mis-mating with signal connectors and connectors with differing voltages. Available with PCB connectors, cable connectors and single ended cable assemblies.

Sensor/ actuator cable (SAC)
With straight M12 plug and free conductor end
Completely assembled
A-coded

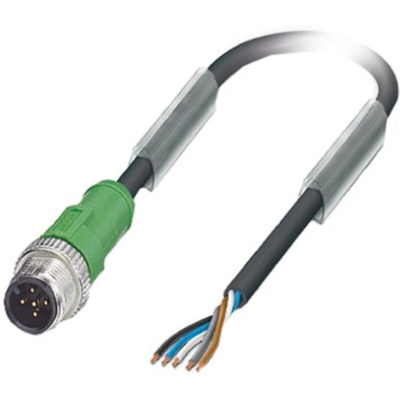

Phoenix Contact Sensor Actuator Cable, Male M12 to Free End, 5m Length - SAC-5P-M12MS/5.0-PUR - 1669783

This Phoenix Contact sensor actuator cable provides a watertight, reliable connection between your equipment and sensors or switches. You'll find it used in automation, manufacturing and other commercial systems to send and receive information. The industry-standard M12 connection makes it simple to integrate into your existing setup. When installed, this cord set has an IP65, IP68 and IP69K rating, meaning it's dustproof, water-resistant against jets of water and can be submerged in up to 1m of water for 30 minutes, so it suits demanding industrial environments.
Thanks to its durable PUR sheath that's difficult to cut or tear, you can use this wire in heavy-duty applications. The sheath is also protected from ozone, UV and humidity damage, so this is a durable option for use in outdoor applications.

• Colour-coded connectors prevent mismating for straightforward installation
• Works with both AC and DC voltages for flexibility
• Wide operating temperature range between -25°C and +90°C for use in demanding settings
• Standard 22AWG size suits small systems such as signalling alarms

Phoenix Contact - PLUSCON field

SAC-5P-M12MS/5,0-PUR

Instruction Sheet - Sensor & Actuator Cables
