1669796, Phoenix Contact Right Angle Male 5 way M12 to Unterminated Sensor Actuator Cable, 1.5m, Кабельная сборка

M12 Plug with free conductor end

S & T Coded M12 Power Connectors and Cable Assemblies provide a robust watertight connection for high power in AC or DC voltages. Both versions are coded to prevent mis-mating with signal connectors and connectors with differing voltages. Available with PCB connectors, cable connectors and single ended cable assemblies.

Sensor/ actuator cable (SAC)
With straight M12 plug and free conductor end
Completely assembled
A-coded

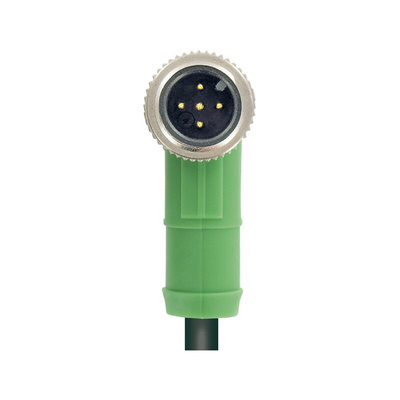

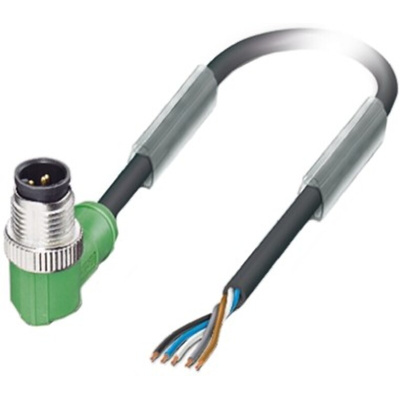

Phoenix Contact Sensor Actuator Cable, Right-Angle Male M12 to Free End, 1.5m Length - SAC-5P-M12MR/1.5-PUR - 1669796

This Phoenix Contact sensor actuator cable reliably transmits data between your industrial machinery and sensors, transducers and switches. Its right-angled head makes it easy to install in tight setups and minimises bending stress on the wire. Each core revealed at the free-end is colour-coded for accuracy during installation and maintenance.
The tinned-copper contact in the M12 connector resists corrosion and oxidation to maintain a reliable connection even in humid environments. AC loss in high-frequency windings is reduced thanks to the litz wire conductor. This cable's PUR sheathing is flame-retardant and resistant to oils, as well as being difficult to cut or tear, making it suitable for heavy-duty applications. The standard 22AWG size suits smaller devices such as alarms and signalling systems.

• IP65, IP67 and IP69K rating indicates it's dustproof, protected against water jets and waterproof up to 1m for 30 minutes
• Wide operating temperature range between -25°C and +90°C for use in challenging settings
• 1.5m cable length allows for connections between adjacent equipment without unnecessary cable clutter

Phoenix Contact - PLUSCON field

SAC-5P-M12MR/1,5-PUR

Instruction Sheet - Sensor & Actuator Cables
