1669806, Phoenix Contact Right Angle Male 5 way M12 to Sensor Actuator Cable, 3m, Кабельная сборка

M12 Plug with free conductor end

S & T Coded M12 Power Connectors and Cable Assemblies provide a robust watertight connection for high power in AC or DC voltages. Both versions are coded to prevent mis-mating with signal connectors and connectors with differing voltages. Available with PCB connectors, cable connectors and single ended cable assemblies.

Sensor/ actuator cable (SAC)
With straight M12 plug and free conductor end
Completely assembled
A-coded

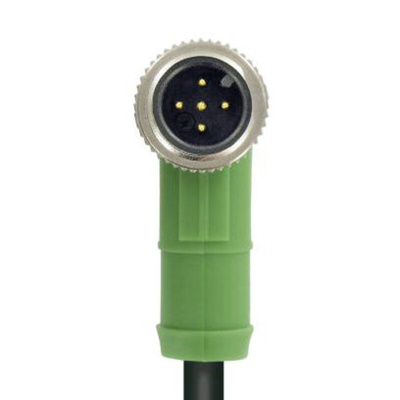

Phoenix Contact Right Angle Male M12 To Free End Sensor Actuator Cable, 3m Length, 22AWG - SAC-5P-M12MR/3.0-PUR - 1669806

Securely connect your sensors and actuators to control units with this robust cable from Phoenix Contact. It has an M12 connector on one end and is unterminated on the other. You can either use the unterminated end to extend an existing connection line or use an adapter to create a double-ended cable.
The durable polyurethane sheath is resistant to impact and abrasion, making the cable suitable for use in demanding environments. It can also withstand acids, alkaline solutions and solvents, so you can use it in chemical processing plants. The 5-pole configuration is compatible with 3-pole and 4-pole wire arrangements, making this a versatile choice. Its copper compacts are highly conductive to give you an effective connection, and its ample length of 3 metres means it's ideal for linking devices across larger workspaces.

• Wide operating temperature range of -25°C to +90°C for use in demanding environments
• IP68 (ingress protection) rating means it can withstand dust and immersion in up to 1.5m of water for 30 minutes
• Green connector colour makes it easy to identify

Phoenix Contact - PLUSCON field

SAC-5P-M12MR/3,0-PUR
