1694839, Phoenix Contact Straight Female 4 way M12 to Unterminated Sensor Actuator Cable, 10m, Кабельная сборка

Phoenix Contact Sensor Actuator Cable, A Coding, 24V Voltage Rating - SAC-4P-10,0-PUR/M12FS-2L - 1694839

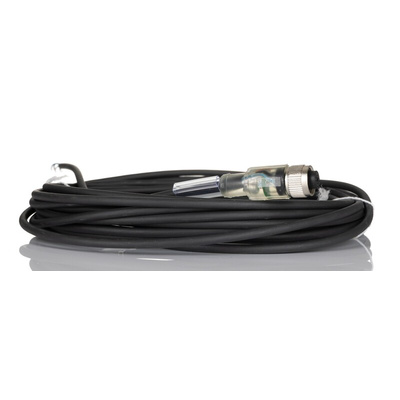

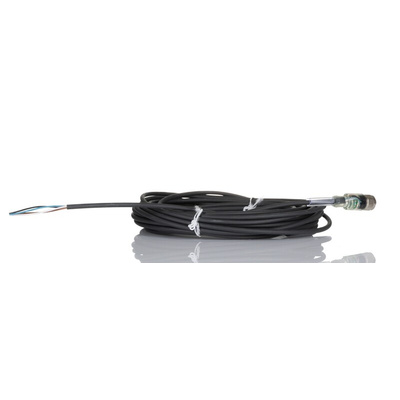

Get your signals on the right path with this sensor actuator cable from Phoenix Contact. The plug twists on and off, giving you a fast, locking connection. It's durable for at least 100 plugging cycles, ensuring your network is reliable and adaptable. A universal M12 connector with A coding means you'll have no trouble matching it up to your existing network. The other end is unterminated, leaving you free to hook it up to your equipment.

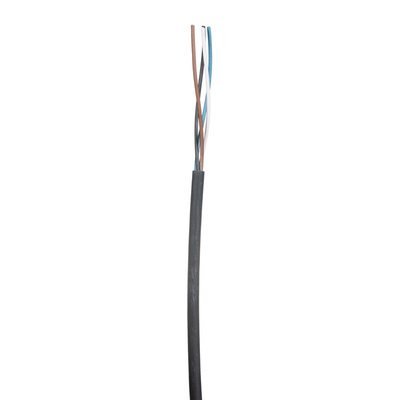

A 10m length and bend radius between 23.5 and 47mm keeps the cable versatile. You can route it through conduits and use it in a fixed or flexible installation. Wires are colour-coded to give you an error-free connection. As they're twisted and insulated, you can be sure that noise and interference won't disrupt your signals. Integrated LEDs help you check the connection status and spot errors swiftly. You'll find assemblies like this used for machine automation in the chemical, automotive and food industries.

Features & Benefits

• Wide operating temperature range between -25°C and +90°C, to handle harsh conditions
• IP69K rating means connections are dust-tight and resistant to hot, high-pressure water jets
• Rugged polyurethane jacket is resistant to acids, oils and solvents
• Slow burning and free from halogen and silicone for fire safety

Phoenix Contact - PLUSCON field

SAC-4P-10,0-PUR/M12FS-2L

Instruction Sheet - SAC Series
