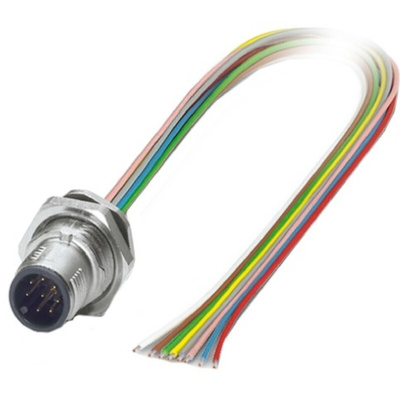

1419700, Phoenix Contact Male 12 way M12 to Sensor Actuator Cable, 500mm, Кабельная сборка

M12 Flush-type connector with individual litz wires, rear mounting

Sensor/ actuator flush-type connector
M12 SPEEDCON
Rear/ screw mounting with M16 thread
With 0.5 m TPE litz wire

Phoenix Contact Cable Assembly, M12 to Unterminated, 500mm - SACC-DSI-M12MS-12CON-M16/0,5 - 1419700

This Phoenix Contact cable assembly connects to your sensor or actuator for high-speed data transmission. The M12 connector is designed for rear mounting to your electrical device, while the other unterminated end has eight wires for customising your connection according to your needs.
The connector has a knurled design for easy fastening to the terminal. The die-cast zinc material provides high strength and corrosion resistance for use in harsh environments. Its nitrile rubber (NBR) seal has good resistance to water and oil to keep the connector protected against damage.
Thanks to its copper-tin alloy contacts, the cable has a high level of conductivity for reliable signal transmission. The contacts are also gold-plated to ensure durability and resistance to rust. The assembly has an IP67 (ingress protection) rating for protection against dust and temporary submersion in water, so it can withstand demanding environmental conditions.

Features & Benefits

• Flat nut on back of connector twists securely into rear mount for simple, secure installation
• High insulation resistance of 100MΩ (megaohms) to prevent current leakage and protect against electric shock
• Short cable length of 500mm for connections in tight spaces

SACC-DSI-M12MS-12CON-M16/0,5
