1435247, Phoenix Contact Female 3 way DIN 43650 Form B to Unterminated Sensor Actuator Cable, 3m, Кабельная сборка

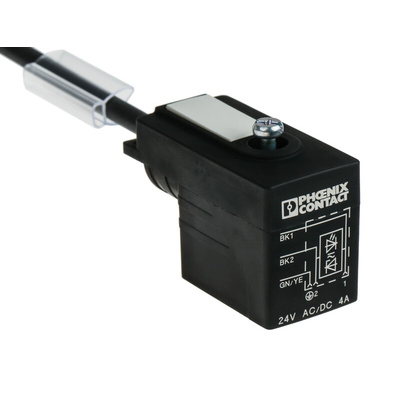

Assembled valve connector with free conductor end

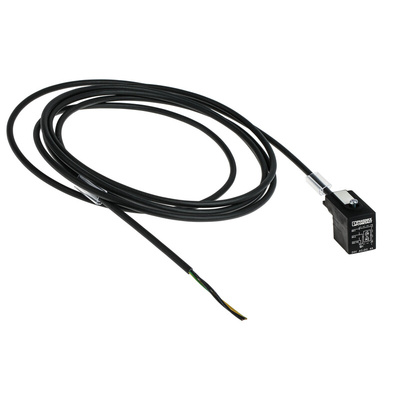

Sensor/ actuator cable with valve connector and free conductor end
Fully assembled
With status indicator and protective circuit

Phoenix Contact Female DIN 43650 Form B to Free End Sensor Actuator Cable, 3m Length, 20AWG - SAC-3P- 3.0-PUR/BI-1L-Z - 1435247

Choose this sensor actuator cable from Phoenix Contact to transmit data between your sensory devices and their control units. It has a Form B solenoid valve connector on one end and is unterminated on the other, so you can add a solenoid valve to an existing connection line. Three copper and tin contacts on the adapter are hardwearing and conductive to give you a reliable connection. These contacts are housed in thermoplastic polyurethane, which provides insulation against electric shocks.

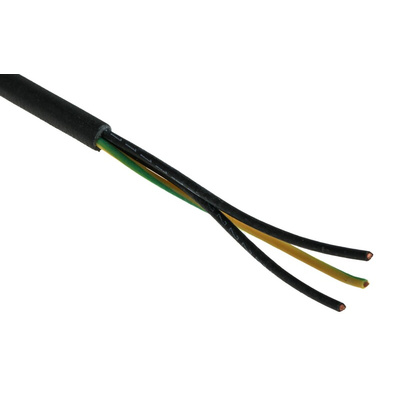

The free end of this cable consists of three wires twisted around each other to prevent electromagnetic interference, giving you noiseless signal transmission. An LED indicator makes it easy to see when the cable is connected and functional. This component is ideal for use in industrial process and packaging applications.

• Ample 3m cable length for use with components that are set at a distance
• Wide operating temperature range of -20°C to +85°C for use in harsh settings
• IP67 (ingress protection) rating means it's shielded from dust and can be immersed in up to 1m of water for 30 minutes

PLUSCON field - Valve connector EN 175301-803

SAC-3P- 3,0-PUR/BI-1L-Z
