1696222, Phoenix Contact 3 Pole M8 Plug to 6 Pole M8 Socket Adapter

SAC 3-pole distributors from Phoenix Contact

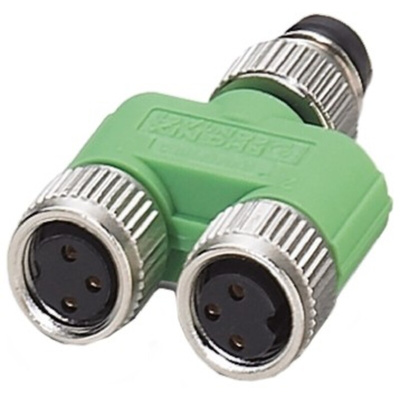

The 3-pole Y distributors from Phoenix contact come in a variation of M8 & M12 outputs. They're unshielded connectors with the coding of 'A' and will allow you to connect two sensor-actuator cables and output them via 1 single M8 or M12 connection. Not only are these distributors great in the line of duty thanks to there effortless connection method (plugin) but they make great use in more permanent situations too, allowing you to use these for any applications. These devices are backed by a brilliant IP67 rating, so can again be used as a quick deployment tool or in a permanent industrial application.

Not to mention, the Y distributor is designed to be used in harsh environments so it can handle operating temperatures of -25°C up to 90°C, with a strong housing and metal zinc cast knurls.

Features and benefits:

• Y Distributor: 2 inputs into 1 output


• Standard coding A with a straight socket


• Parallell distributor


• Backed by an IP67 rating when fully mated with other connectors


• 48 V AC/60 V DC rated voltage

Phoenix Contact Circular Connector Adapter, Brass, Straight - 1696222

This Phoenix Contact circular connector adapter with brass contact and IP65/IP67 rating is a robust and reliable industrial connector adapter designed for use in automation, electronics, electrical, and mechanical industries. This adapter offers a straight connector design with a 4A current rating and a 60V voltage rating, making it ideal for a wide range of applications.

Features & Benefits

• Brass contacts material ensures high conductivity and durability
• Gold plated connector for superior corrosion resistance
• IP65/IP67 rated for protection against dust and water ingress
• Straight connector design for easy installation and secure connection
• 4A current rating and 60V voltage rating for versatile applications

Applications

• Ideal for use in Industrial automation systems
• Suitable for electrical control panels and machinery
• Perfect for connecting sensors and actuators in harsh environments
• Used in manufacturing processes for reliable signal transmission

Can it withstand extreme temperatures?

Yes, the Phoenix Contact circular connector adapter is designed to operate in temperatures ranging from -25°C to +90°C, making it suitable for various industrial environments.

Will it provide a secure connection?

Yes, the adapter features a straight connector design with brass contacts and gold plating, ensuring a reliable and secure connection for your equipment.

Is it suitable for outdoor use?

Yes, the IP65/IP67 rating of the adapter makes it ideal for outdoor applications where protection against dust and water is essential.
