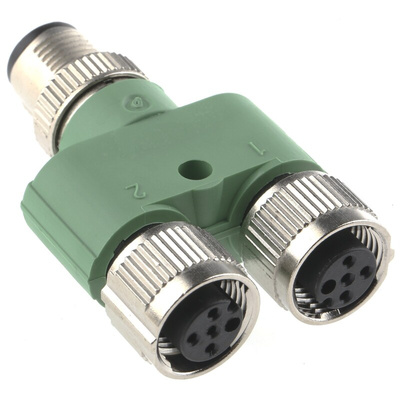

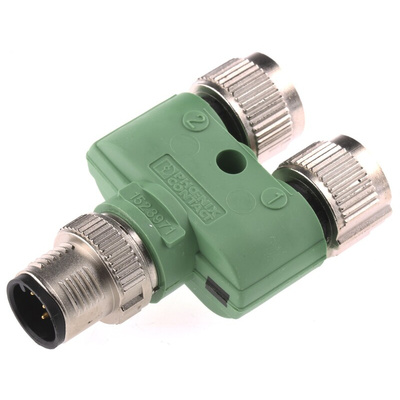

1523971, Phoenix Contact 5 Pole M12 Plug to 2 Pole M12 Socket Adapter

SAC 3-pole distributors from Phoenix Contact

The 3-pole Y distributors from Phoenix contact come in a variation of M8 & M12 outputs. They're unshielded connectors with the coding of 'A' and will allow you to connect two sensor-actuator cables and output them via 1 single M8 or M12 connection. Not only are these distributors great in the line of duty thanks to there effortless connection method (plugin) but they make great use in more permanent situations too, allowing you to use these for any applications. These devices are backed by a brilliant IP67 rating, so can again be used as a quick deployment tool or in a permanent industrial application.

Not to mention, the Y distributor is designed to be used in harsh environments so it can handle operating temperatures of -25°C up to 90°C, with a strong housing and metal zinc cast knurls.

Features and benefits:

• Y Distributor: 2 inputs into 1 output


• Standard coding A with a straight socket


• Parallell distributor


• Backed by an IP67 rating when fully mated with other connectors


• 48 V AC/60 V DC rated voltage

Phoenix Contact - PLUSCON field

SAC-3P-Y/2XFS PE SCO
