1519765, Phoenix Contact 4 Pole M12 Plug to 4 Pole M8 Socket Adapter

Phoenix Contact Adapter, NBR Seals, IP65 and IP67 Rating - SAC-4P-M12MS-M 8FS - 1519765

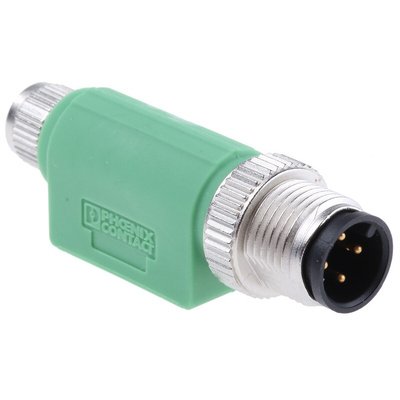

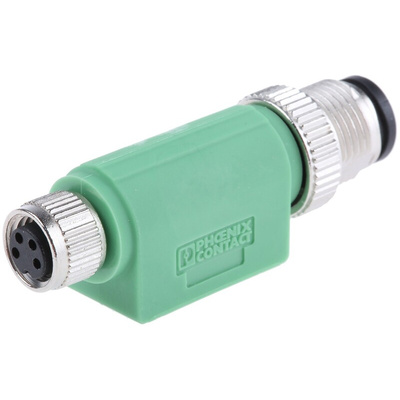

When you need a versatile and robust circular connector, go for this adapter from Phoenix Contact. You can use it to make links between machines that have mismatched connections as it has a straight M12 plug on one side and a straight M8 socket on the other. Both of these connectors are A-coded, which means they follow an industry-standard configuration for wide compatibility and easy mating.
The component's electrics are safely housed in a robust TPU body that resists impact and is self-extinguishing, meaning it puts itself out quickly to prevent the spread of flames in case of fire. Thanks to the product's NBR seals, you can trust you're getting top-notch shielding against environmental hazards, so it's a safe bet for demanding industrial applications.

Features & Benefits

• IP65 and IP67 approval certifies it's dustproof, resists low-pressure water jets and submersion in up to 1m of water
• Tinned copper contacts with nickel-gold plating mean you get high-quality electrical connections
• IEC 61076-2-104 and 61076-2-101 approvals let you know it meets electrical standards as a safe thread-locking adapter
• Thumbscrew mechanism achieves a tight, leak-free mating with compatible connectors

Phoenix Contact - PLUSCON field

Datasheet 1519765
