1208445, Phoenix Contact, SACC BIT M12-D20 Assembly Tool

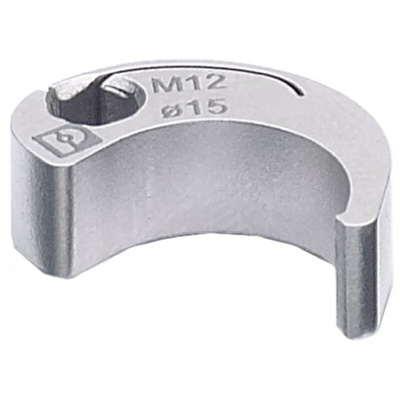

Phoenix Contact Crimp Locator For Use With M12 Connectors, 4mm Hexagonal Drive Type - SACC BIT M12-D20 - 1208445

Looking for a reliable way to terminate electrical cables? This crimp locator from Phoenix Contact is your first port of call. Just fit it into a crimper and it will provide the hole size you need for attaching M12 connectors. These are common in processes that involve sensors, actuators or industrial Ethernet, ensuring you stay plugged in for greater efficiency.
Using this tool is child's play. After stripping the wires down to 25mm, put a ferrule on each contact and thread them one at a time into the locator's 15mm-wide hole. Give the handles a good squeeze to secure the ferrules, then slide the terminated wires into a contact carrier and finish off by assembling the connector's housing. Weighing in at just 20g, this product is light enough to ensure easy handling of your crimping tool.

• Strong and durable steel body helps to ensure a longer service life
• Nickel plating is resistant to wearing and corrosion for use in heavy-duty applications
• Enables 4mm hexagonal drive, which creates a strong crimp for a more reliable connection

Phoenix Contact - PLUSCON field

SACC BIT M12-D20
