HMISTU855, Schneider Electric STU Series Touch Screen HMI - 5.7 in, TFT LCD Display, 320 x 240pixels, Дисплей

Schneider Electric Magelis STO & STU HMI Touch Panel - HMISTU

Schneider Electric Magelis STO & STU HMI touch panels are the end result of innovative engineering, representing the key to total integrated automation. performing HMI tasks (human-machine interface) of higher complexities is the main function of the module. Providing users with the ultimate convenience and automation solution for a multitude of applications.

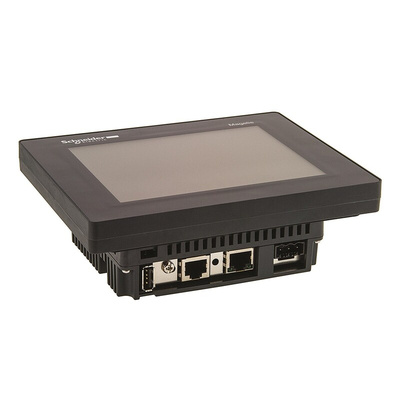

Thanks to its “pushbutton” style mounting system, Magelis STU fits anywhere on machines or enclosures. In addition to the standard RJ45 serial link, the Magelis STU also features an embedded Ethernet connection for quicker, more extensive communication (via Modbus TCP, Ethernet IP and Profinet protocols for example) offering more services (such as Web Gate and e-mail).

Features & Benefits

• High definition colour screen TFT QVGA 3.5’’


• 3.5" QVGA resolution, 65K colours, touch screen graphic terminal, configured by Vijeo Designer


• Resolution: 200 x 80 pixels


• No tools are required to install Magelis STO and STU panels.


• Compact, they can be mounted directly on the machine frame or in an enclosure.

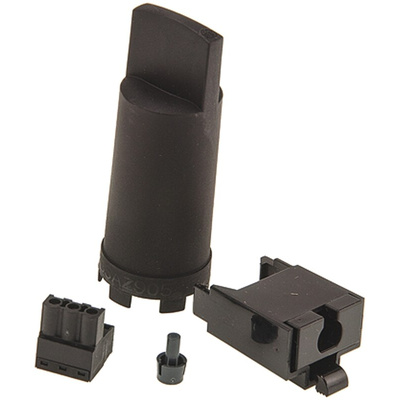

• After spring clip technology, the 22" diameter “pushbutton” mounting system which eliminates the enclosure cut-out


• No batteries required, backlit by an LED


• Removable power connector


• USB memory stick for application downloads


• Remote control with the Web Gate function


• The design offers ease of use and configuration with a single software program all contribute to making this range an innovative, economical and powerful

Schneider Electric STU Series Touch Screen HMI, 320 x 240 pixels Display Resolution, 24VDC Supply Voltage - HMISTU855

This Schneider Electric touch screen HMI is a cutting edge device designed for users in the automation, electronics, Electrical, and mechanical industries. With a 5.7 inch TFT LCD display, IP20 IP65 rating, RISC ARM9 processor, and 24V DC supply voltage, this HMI offers unparalleled performance and reliability.

Features & Benefits

• High quality 5.7 inch TFT LCD display for clear and vibrant visuals
• IP20 IP65 rating ensures protection against dust and water ingress, making it suitable for a wide range of industrial applications
• Green Premium Verification highlights Schneider Electric's commitment to sustainability
• RISC ARM9 processor delivers powerful and efficient performance
• 24V DC supply voltage for easy integration into existing systems

Applications

• Ideal for use in automation systems for monitoring and control
• Suitable for electronics and electrical industry applications requiring a reliable HMI solution

Can it withstand harsh industrial environments?

Yes, the Schneider Electric touch screen HMI is designed to operate efficiently in challenging industrial settings.

Will it integrate easily with existing automation systems?

The HMISTU855 is compatible with a wide range of automation systems, ensuring seamless integration.

Is it easy to use for individuals with limited technical knowledge?

Despite its advanced features, the HMI is user-friendly and intuitive, making it accessible to users of all technical levels.

Can it handle complex data processing tasks?

The RISC ARM9 processor ensures smooth and efficient data processing, even for complex applications.

Is it suitable for outdoor installations?

With its IP20 IP65 rating, the HMI is suitable for both indoor and outdoor installations, providing versatility for various applications.

Schneider Electric Magelis STO-STU

The new Magelis STO and STU boost the Magelis Small Panels range: more flexibility, more communication, easy and fast revolutionary mounting system. Powered by Vijeo Designer, they bring a cost-effective solution, especially to the machine builders.

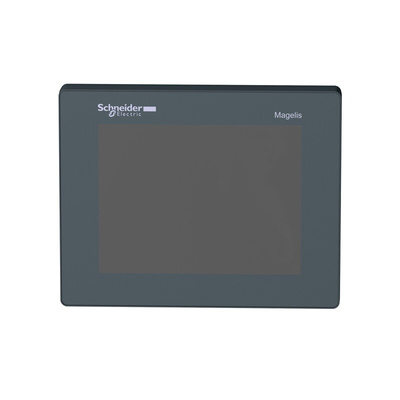

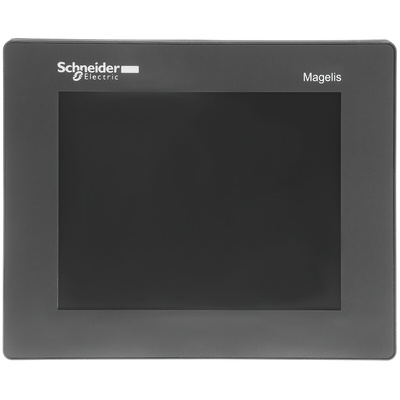

HMISTU855 touch panel screen

Product Environmental Profile

Catalogue - Harmony STO and STU Series

Manual - Harmony HMISTU655/855 Series

Instruction Sheet - HMISTU Series
