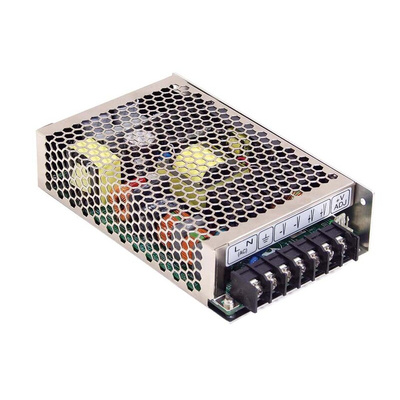

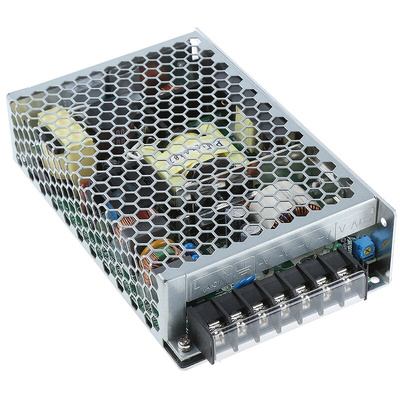

MEAN WELL Switching Power Supply, HRPG-150-48RS, 48V dc, 3.3A, 158W, 1 Output, 120 → 370 V dc, 85 → 264 V, Источник питания

HRPG-150 Series Single Output Power Supply with PFC Function

High efficiency, long life and high reliability
No load power consumption <0.5W
Built-in active PFC function
Built-in constant current limiting circuit
Built-in remote sense function
Built-in remote ON-OFF control
Short circuit, over load, over voltage and over temperature protection
Withstands 300Vac surge input for 5 seconds
1U low profile 38mm
Power factor correction to EN61000-3-2,-3
EMC compliance to EN55022 class B

Note

Power derates above 40°C.
MTBF to MIL-HDBK-217F.

Standards

UL60950-1, TUV EN60950-1

Approvals

UL/cUL recognised, TUV, CB

HRPG-150 Series specification sheet

Declaration Of Conformity
