GS15A-3P1J, MEAN WELL Power Brick AC/DC Adapter 12V dc Output, 1.25A Output, Блок питания

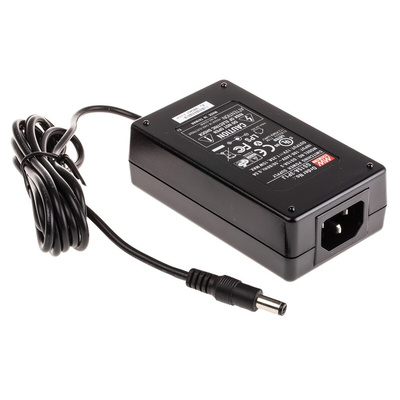

Mean Well Desktop Power Supply

The Mean Well GS series desktop power supply is the latest invention with an adapter and a voltage rating of 12VDC. It provides 15W of continuous output power in a high-quality compact enclosure suitable for many general power applications. It has an input frequency range from 47Hz to 63Hz. While the input voltage rating ranging from 90VAC to 264VAC/135VDC to 370VDC, its maximum input current is 50A. It has 3-pin IEC320, C14 input socket. This switch-mode, single output desktop power supply has a fully enclosed in a plastic case. It has features like a short-circuit, suitable input leads, overload and voltage protection, along with an LED indication for power on.
Note:
Conforms to energy-related product directive 2009/125/EC. MTBF to MIL-HDBK-217F.

Features and Benefits

High efficiency, long life and high reliability
ErP compliant
No load power consumption of less than 0.3W
short-circuit, over load and over voltage protection
1m output lead fitted with a centre positive jack plug
Pass LPS

Applications

Laptop power supply
Netbook power supply or notebook power supply

Certifications

EMC compliance FCC part 15
EN55022 class B
Harmonic compliance to EN 61000-3-2,3
UL60950-1
TUV EN60950-1
UL/cUL approved
TUV
CB
EISA 2007 (energy independence and security act)
