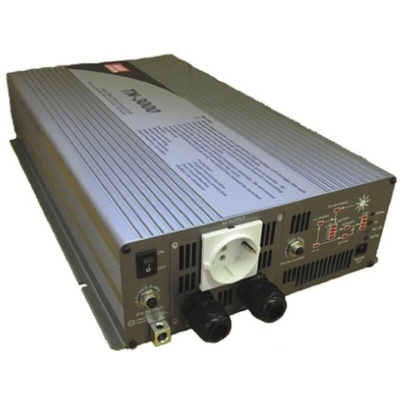

TN-3000-248B, MEAN WELL Pure Sine Wave 3000W Power Inverter, 42 → 60V dc Input, 230V ac Output, Инвертор

Mean Well - True Sine Wave 3000W, 3 Pin UK & Schuko Output Sockets

3000 W true sine wave AC-DC inverter with built in solar and AC charger. These true sine wave AC-DC inverters have a selectable UPS and energy saving mode, a standby saving mode and offer a high surge power of up to 6000W. Suitable applications for these true sine wave AC-DC inverters include home applicances, power tools, office and portable equipment and vehicles.

True sine wave output (THD <3%)
Built in solar and AC charger
Selectable UPS mode and energy saving mode
Front panel indication of operation status
Thermostatically controlled cooling fan
Standby saving mode to conserve energy for loads ≤ 5 W
High efficiency of up to 92%
Protection: battery low alarm, battery low shutdown, overvoltage, over temperature, output short, input polarity reverse, overload, AC circuit breaker
'E' approval for vehicle applications
EMC compliance to EN55022 class A

Note

Derates to 50% load at 60°C

Standards

LVD EN60950-1

Warning
type":"Warning",

3

3000W True Sine Wave DC-AC Inverter with Solar Charger TN-3000 series Data Sheet
