ISE30A-01-B-G, SMC Pressure Switch, 1.5 MPa

SMC Digital Pressure Switch

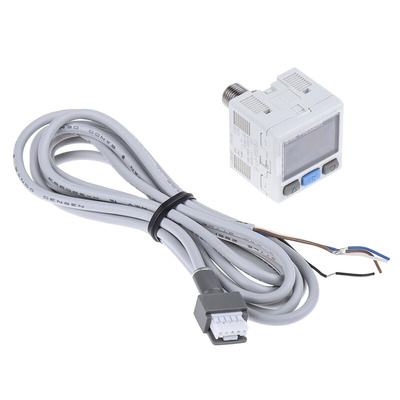

The SMC ISE30A series digital pressure switch has a maximum operating pressure of 1MPa. It has a dual output of PNP open collector. This switch is available with 2m length lead wire connector and connector cover.
Note:
Part number ZS-27-A is a 3-core cable assembly and suits all the now obsolete ZSE/ISE30-#-#-# and when supplied with the unit has the suffix code letter -L

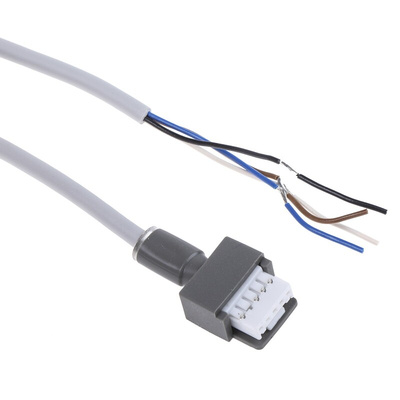

Part number ZS-38-3L is a 3-core cable assembly and suits the new ZSE30A/ZSE30F/ISE30A-#-N or P and is shown when supplied with the item as an additional suffix -L after the N or P

Features and Benefits

R1/8 female M5 thread connection

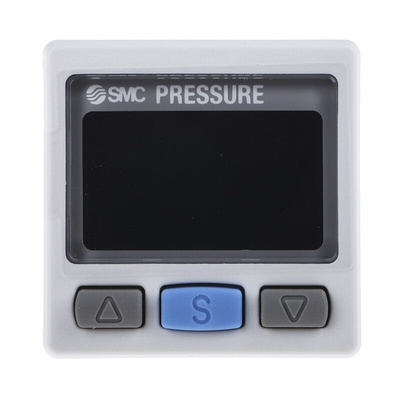

2-colour digital display for fast "abnormal condition" identification
Display calibration capability allowing uniformity of display
High precision resolution, typically 1/1000
User selectable pressure unit display
User-friendly, raised rubber button control

Certifications

CE certified
CSA certified
IP40 rated
UL listed

ISE30A/ZSE30A(F) Digital Pressure Switch Operation Manual

Datasheet
