LEDD125-04-04, Moflash LEDD125 Series Green Multiple Effect Beacon, 230V AC, Surface Mount, LED Bulb, IP65, Маячок

Moflash Multi-Function LED Beacon - LEDD125 Series

The LEDD 125 Beacons are suitable for fire, security and industrial applications. These beacons offer three alternative light modes: Continuously ON, Rapid Flash (120 FPM) and Standard Flash (60FPM), which can be selected by a dip switch mounted lens side on the PCB. The AC units are supplied with one meter of flying lead, while the DC units allow for termination inside the base enclosure. An M12 sealing grommet in the base allows for cable entry.

100000 hours life for LED
48 LED array ultra bright
360° visibility
Continuously ON, rapid flash (120 FPM) or standard flash (60FPM)
3 point fixing
UV stable polycarbonate lens and ABS base
IP65 protection
RoHS compliant
CE marking

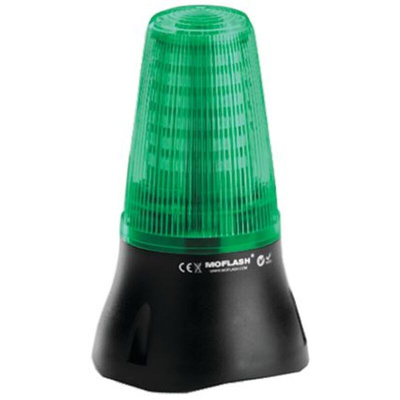

Moflash Multifunction Green LED Beacon, 230V AC, 40mA - LEDD125 Series - LEDD125-04-04

To quickly inform personnel of normal operating conditions, choose this green beacon from Moflash. It comes with LED bulbs to produce a bright visual signal that's easy to see in low-light situations. You can set the beacon to either a continuous mode or two different flashing modes, making it a versatile choice. Thanks to its 360° light output, this beacon is visible from all angles. Its polycarbonate lens is UV-stable to prevent discolouration under direct sunlight.

Features & Benefits

• IP65 rating indicates it's dustproof and protected from low-pressure water jets
• Durable ABS base for resistance to impact
• Wide operating temperature range between -20°C and +45°C for use in demanding environments

Applications

• Packaging plants
• Construction industry
• Aviation industry

How do I adjust the light mode of this beacon?

You can easily select your preferred light mode using the jumper link on the PCB.
