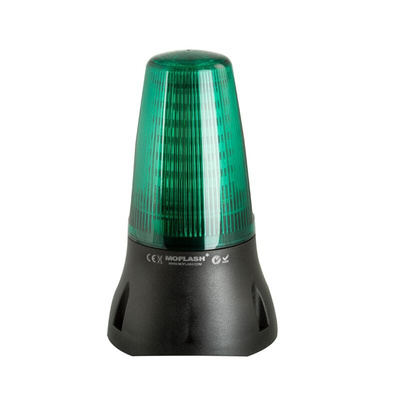

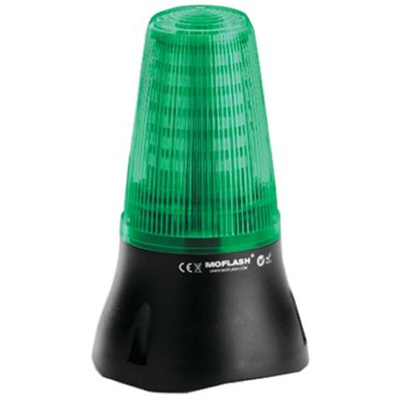

LEDA125-04-04, Moflash LEDA125 Series Green Sounder Beacon, 230 V ac, IP65, Surface Mount, 90dB at 1 Metre

Compact LED Beacon / Buzzer Combination

The LEDA 125 Beacon / buzzer combination provides an audible and visual signal which is suitable for fire, security and industrial applications. These beacons offer three alternative light modes: Continuously ON, Rapid Flash (120 FPM) and Standard Flash (60FPM), which can be selected by a dip switch mounted lens side on the PCB. The base of the beacon / buzzer houses two Piezo sounders that are synchronised to the light mode. The AC units are supplied with one meter of flying lead, while the DC units allow for termination inside the base enclosure. An M12 sealing grommet in the base allows for cable entry.

Two signals in one
100000 hours life for LED
Continuously rated
48 LED array ultra bright
360° visibility
Continuously ON, rapid flash (120 FPM) or standard flash (60FPM)
3 point fixing
UV stable polycarbonate lens and ABS base
IP65 protection
RoHS compliant
CE marking

Note

Piezos cannot be controlled independently from the light.

Moflash Sounder-Beacon Combination, Multiple Light Effects, Green Lens Colour - LEDA125 Series - LEDA125-04-04

Choose this sounder beacon from Moflash for clear audio and visual signalling in your industrial environments. It has two piezo buzzers that emit up to 90dB of sound, so it will quickly draw attention in loud workspaces. The beacon's array of 48 LEDs produces a high-intensity light for good visibility. You can mount this beacon to a wall or surface, making it a versatile choice.

Features & Benefits

• UV-stable PC lens won't deteriorate or fade in direct sunlight
• ABS base is resistant to impact and wear
• IP65 rating means it's protected against dust and low-pressure water jets
• Low current consumption of 40mA for energy efficiency

Applications

• Fire stations
• Warehouses
• Security systems

What light effect does this sounder beacon produce?

This sounder beacon offers a choice between a steady mode, a rapid flash mode at 90FPM and a standard flash mode at 60FPM for versatility.

LED/Buzzer

Datasheet

Datasheet

Moflash Signalling Product Range
