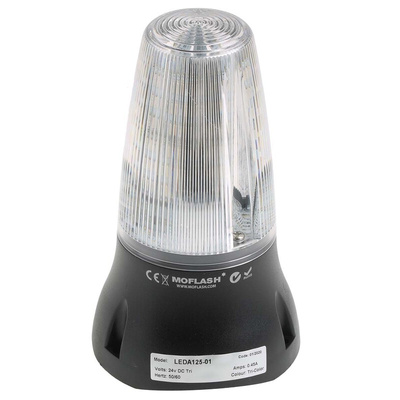

LEDA125-01, Moflash LEDA125 Sounder Beacon 90dB, Clear LED, 24 V dc

Moflash Buzzer Beacon

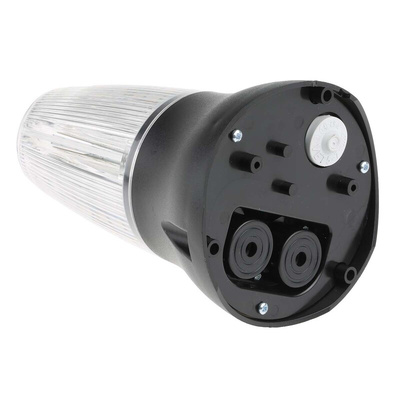

The Moflash buzzer beacon is a piece of new-age equipment with a clear lens. It provides an audible and visual signal suitable for fire, security and industrial applications. This beacon offers 3 alternative light modes such as continuously ON, rapid flash (120FPM) and standard flash (60FPM). It incorporates a piezo buzzer, situated in the base of the unit with a sound output of 90dB, synchronised to the light mode. These modes can be selected by a dip switch mounted lens side on the PCB. The AC units are provided with one meter of flying lead, while the DC units allow termination inside the base enclosure. An M12 sealing grommet in the base is meant for cable entry.
Note:
Piezos cannot be controlled independently from the light.

Features and Benefits

The supply voltage is 24VDC
Continuously rated
100k hours life for LED
Suitable for surface or wall mounting
3 point fixing
360° light output around the vertical axis
Dustproof and weatherproof
UV stable polycarbonate lens
UV stable ABS plastic base
Operating temperature ranges between -25°C and 45°C

Certifications

IP65 rated
CE certified
