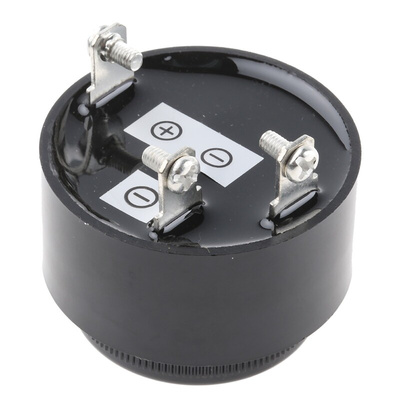

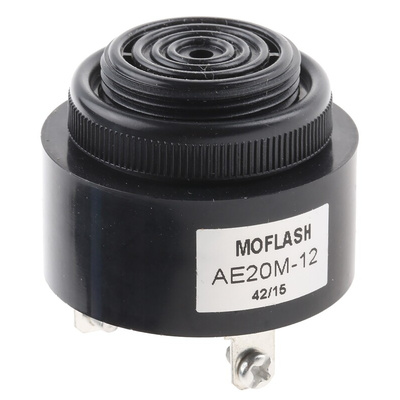

AE20M-12, Moflash AE20M Series Panel Mount Buzzer, 12 V, 95dB at 1 m, IP55, DC, 2-Tone, Зуммер

Moflash Buzzer, 12V DC, 95dB - AE20M Series - AE20M-12

This buzzer from Moflash is an energy-efficient audio signalling solution for industrial and commercial environments. It's made of acrylonitrile butadiene styrene (ABS) that's durable and corrosion-resistant, so it offers a long service life. The buzzer's distinctive noise is made by applying an electric charge that deforms the piezoelectric material inside the unit and produces a high-pitched sound. You can configure this unit to produce either a fast pulse or a continuous tone, giving you versatility in your alarm system setup. Piezo buzzers like this are useful in areas where minimal energy consumption is critical.

Features and Benefits

• Compact 43mm diameter to fit into small spaces
• Panel mounting style with locking ring for easy installation
• Low current rating of 25mA for energy efficiency
• Low 0.08kg weight makes it easy to handle
• IP55 (ingress protection) rating indicates limited resistance to dust and low-pressure water jets from any direction

Application Information

• Automotive applications
• Safety systems
• Pest repellent devices

How do I power this buzzer?

You can power this device by simply attaching it to a DC supply on the electrical panel where it's mounted.

Datasheet

Moflash Signalling Product Range
