RS PRO Green Panel Mount Indicator, 2V dc, 6mm Mounting Hole Size, Lead Wires Termination, IP67, Индикатор

RS PRO Green Indicator, 2 V DC, 6 mm Mounting Hole Size, Lead Wires Termination, IP67

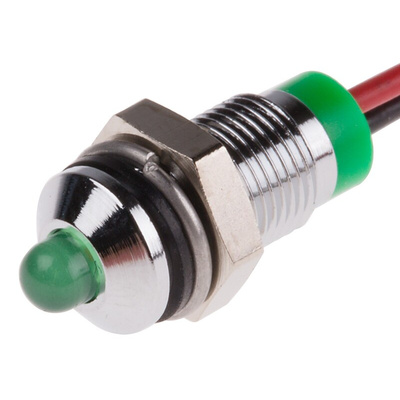

This green LED indicator from RS PRO offers a simple way to monitor the status of your circuits and electrical appliances. It has a low voltage rating of 2 V DC, which minimises electrical risks.
The indicator's light is easy to see thanks to its high intensity of 40 mcd(millicandela) and wide viewing angle of 100°. It also has a life expectancy of up to 100,000 hours, so it's long-lasting and reliable.
This component works within an operating temperature range of -40°C to +85°C and has an IP67 rating for protection against dust and short-term submersion in one metre of water. This means it's suitable for everyday indoor and outdoor applications as well as harsh industrial environments. You'll find it used in industrial equipment, medical devices and computers.

Features and Benefits

• Prominent bezel with bright chrome finish
• Current rating of 20 mA
• Lamp size of 3 mm
• Length of 12 mm
• Mounting hole size of 6 mm

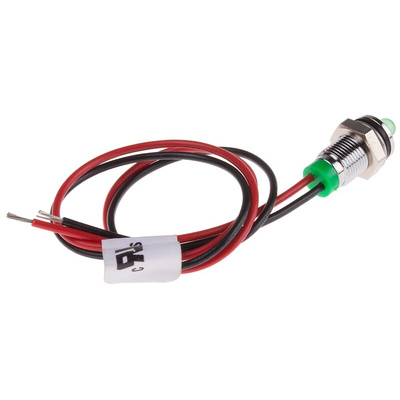

• Lead wire termination type
• Supplied with a fixing nut and spring washer for panel mounting
