64320-1311, Molex, CMC Automotive Connector Socket 48 Way

CMC Hybrid Connector, Receptacle - 64320 and 64318 Series

These CMC Hybrid Wire-to-Board automotive connector Receptacles are high density and sealed using a high performance matte seal technology. For suitable terminals see stock numbers 723-9371 and 723-9362. For suitable blind plugs see stock number 723-9381. For suitable wire cap see stock number 723-9384 typical.
For CMC Headers see stock number 723-9331 typical.

Note

Stock numbers 841-1861 and 723-9347 are Left Wire, stock numbers 841-1852, 841-1865, 774-8144 and 723-9359 are Right Wire.

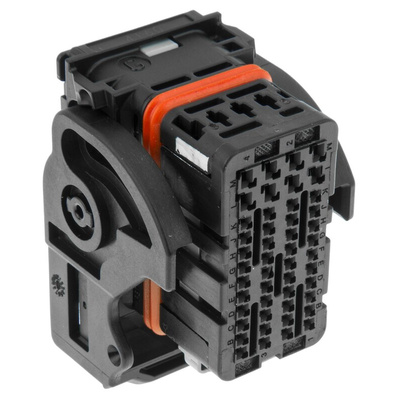

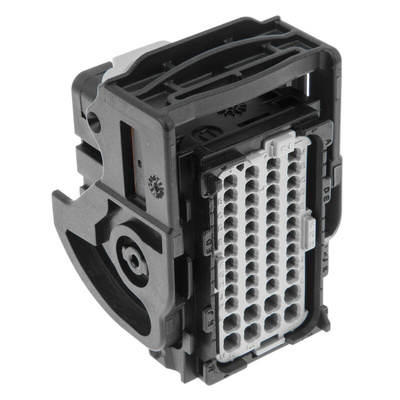

Molex CMC Automotive Connector, 4 Rows, 48 Contacts - 64320 Series - 64320-1311

This single-port automotive connector receptacle from Molex is an effective choice for use in powertrain and body electronics within cars and other vehicles. It features 48 contacts arranged in four equal rows. A locking system secures the corresponding plug into place, helping it to withstand the rough shocks and vibrations that come with transport applications. The innovative matte-seal technology keeps moisture out to secure a safer operation, while the high-density housing made from PBT (polybutylene terephthalate) provides tough and long-lasting protection.

• Wide operating temperature range of -40°C to +125°C means it'll perform efficiently in harsh engine environments
• Current rating of 12A (amperes) provides ample capacity for heavy-duty use
• Modular design enables convenient customisation
• Compact dimensions of 40.5 (D) x 34.25 (H) x 53.2mm (W) means it fits in limited spaces and allows denser packing

Applications

• Automotive manufacturing
• Agricultural machinery
• Shipping industry
• Haulage and logistics

Where is the best place to mount this receptacle?

This plug receptacle mounts directly onto cables for a quick and convenient connection. It also makes easy wire-to-board joins.

Molex CMC Hybrid Connectors

CMC Single port Receptacle(left wire)
