64320-3311, Molex, CMC Automotive Connector Socket 48 Way

CMC Hybrid Connector, Receptacle - 64320 and 64318 Series

These CMC Hybrid Wire-to-Board automotive connector Receptacles are high density and sealed using a high performance matte seal technology. For suitable terminals see stock numbers 723-9371 and 723-9362. For suitable blind plugs see stock number 723-9381. For suitable wire cap see stock number 723-9384 typical.
For CMC Headers see stock number 723-9331 typical.

Note

Stock numbers 841-1861 and 723-9347 are Left Wire, stock numbers 841-1852, 841-1865, 774-8144 and 723-9359 are Right Wire.

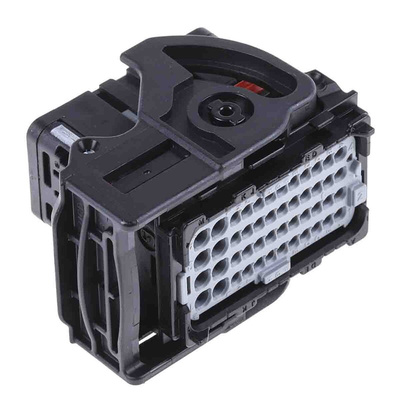

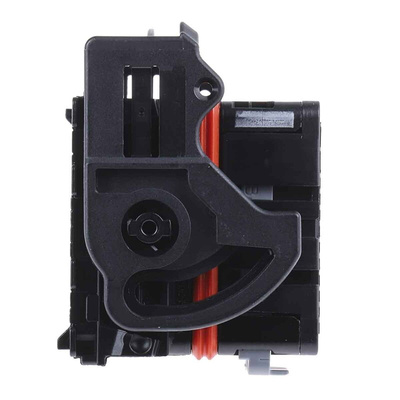

Molex Automotive Connector Socket, 48 Way, 4 Rows - 64320 Series - 64320-3311

This automotive connector socket from Molex provides a heavy-duty connection for wires attached to printed circuit boards (PCBs). The socket is protected using a high-performance matte seal that provides reliable defence against contaminants, ensuring a long-lasting connection. It has 48 compact connectors arranged in four rows, giving you a large circuit carrying capacity without taking up too much space. The 40 terminals are 0.635mm in size and have a maximum current capacity of 6A. To accommodate a range of power needs for different applications, the eight 1.5mm terminals provide a 12A current capacity.

• Wide operating temperature range of -40°C to +125°C for use in harsh work environments
• Tough polybutylene terephthalate (PBT) thermoplastic material for added durability
• Polyester resin stops build-ups of rust and wear over time
• Compact dimensions of 35.25 (height) x 53.2 (width) x 40.5mm (depth) to save space on your PCB
• Compatible with a pitch of 2.54mm and 3.7mm for versatility

Applications

• Body electronics
• Suspension controllers
• Agricultural equipment

How does the socket attach to the PCB?

The socket is a crimp housing connector, making it simple to create an insulated seal with a connector for a reliable and hard-wearing connection.
