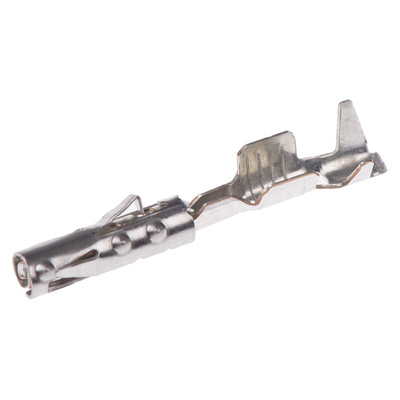

64322-1039, Molex, CP, 64322 Female Crimp Terminal

CMC Hybrid Connector, CP0.635 mm Terminals - 64322 Series

CP terminals for use in the CMC hyrbid connector system. These terminals are available in 1.50 mm and 0.635 mm widths and are designed to support low, medium and high current data requirements. The terminals have a 2 part design with a high conductivity copper alloy body and a stainless steel terminal box. This robust design enables the terminals to perform in high conductivity applications in harsh environments. These CP terminals are available with different platings and to suit a range of wire sizes

Molex Female Hybrid Connector, 0.5mm² Wire Size, For Square 0.6 x 0.6mm Pins - 64332 Series - 64322-1039

This high-quality modular connector from Molex serves as a connection socket for heavy-duty applications with high-current data requirements. The terminals are made of phosphor bronze with tin plating to ensure reliable conductivity and resistance to corrosion. That means it delivers reliable signal transfer even in harsh environments. The unit allows for a crimp termination style and a secure connection that's simple to achieve. You'll commonly find this type of connector used in the automotive industry.

• Compatible with wire sizes of 24 to 22AWG (American Wire Gauge) for use in a range of applications
• Light weight of 0.15g to minimise bulk and strain on equipment
• Contains low levels of halogen to reduce the risk of toxic fumes in the event of a fire

Applications

• Power train control units
• Gearboxes
• Suspension controllers

What safety precautions should I take when using this connector?

To ensure safety, you should never use this connector to terminate a wire that's already connected to a power source as this can cause electric shock. You should also ensure that any wires attached to this connector have no indentations, as this could cause wire leaks and decrease overall performance.

Molex CMC Hybrid Connectors

CMC CP0.635mm Female Crimp Terminal 64322 Series - Drawing

Datasheet

Application Specification
