64322-1029, Molex, CP, 64322 1 Way Terminal

CMC Hybrid Connector, CP0.635 mm Terminals - 64322 Series

CP terminals for use in the CMC hyrbid connector system. These terminals are available in 1.50 mm and 0.635 mm widths and are designed to support low, medium and high current data requirements. The terminals have a 2 part design with a high conductivity copper alloy body and a stainless steel terminal box. This robust design enables the terminals to perform in high conductivity applications in harsh environments. These CP terminals are available with different platings and to suit a range of wire sizes

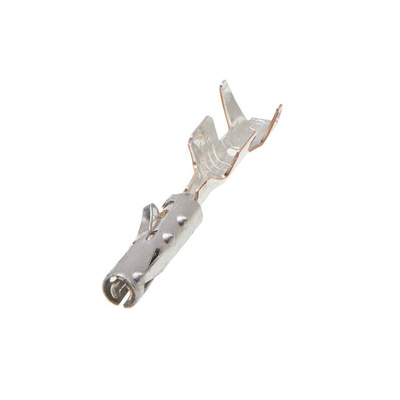

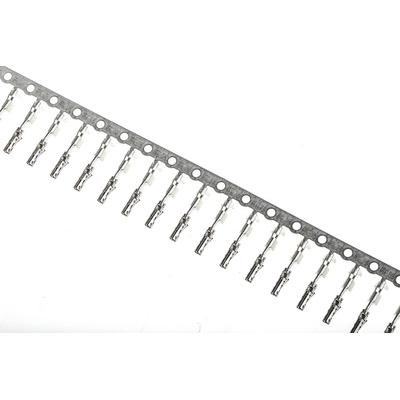

Molex Automotive Connector Terminal, Straight Orientation, Phosphor Bronze Contacts - CP Series - 64322-1029

Keep your motor running efficiently with this automotive connector terminal from Molex. You can use it to make strong and durable electrical connections that stand up to the wear and tear you'd expect in a vehicle. The crimp terminal holds 0.75mm² wires securely in place, even when they're subject to vibration.

Features & Benefits

• Phosphor bronze contacts combine reliable fatigue resistance with high conductivity to achieve a durable and effective connection
• Tin contact plating stands up to corrosion to maintain the conductive connection in damp conditions
• Crimp termination for quick installation and a reliably firm hold on wires

Applications

• Fleet vehicles
• Motorbikes
• Motorhomes

How do I make a crimp connection?

To achieve an air-tight crimp connection, insert your wire into the crimp terminal, then squeeze the metal tubing tightly onto the wire using a crimp tool (such as 723-4786).

Molex CMC Hybrid Connectors

CMC 0.75mm sq crimp terminal

Datasheet

Application Specification
