Teledyne LeCroy CP500 Current Probe, AC/DC Current Type, DC → 2MHz

Teledyne LeCroy Current Probe & Clamp

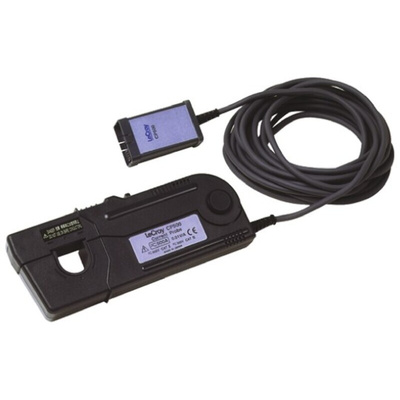

The Teledyne LeCroy 6m current probe is a state of the art device created for easy, highly accurate current measurements. The compact probes offer wide bandwidth with over-current protection and utilize a combination of Hall Effect and transformer technology that enables you to take measurements on DC, AC, and impulse currents. It also has a 2MHz bandwidth and is designed to measure continuous currents up to 500Amp.
Note:
The CP030 (801-4858 ) and CP031 (724-0911 ) are compatible with LeCroy X-stream oscilloscopes running firmware version 4.3.1.1 or greater. Their minimum sensitivity is 10mA/div compared with 1mA/div for CPO30A (878-7604 ) and CPO31A (878-7607 ). The maximum conductor size for these four models is 5mm OD. CP150 (801-4855 ) and CP500 (724-0918 ) have minimum sensitivity 100mA/div and maximum conductor size 20mm OD. Teledyne LeCroy current probes have a small form factor which makes probing easier on a crowded compact board.

Features and Benefits

ProBus active probe interface with automatic scaling in A/div
Autozero and degauss capabilities built-into instrument’s user interface
700 Apeak current
30 Arms continuous current
2MHz bandwidth
100mA/div sensitivity
Compatible with the DSC015

Applications

Switching power supplies
Motor drives
Electric vehicles
Uninterruptible power supplies

Certifications

CAT II 600V
CAT III 300V
CAT II
CAT III
