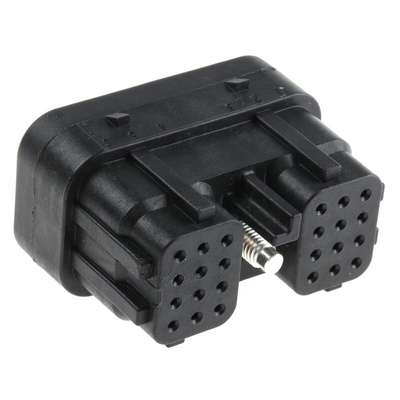

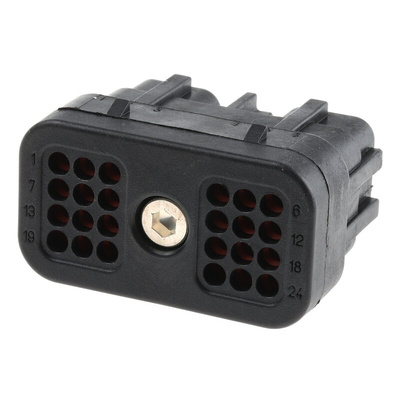

DRC26-24SA, Deutsch DRC 24 Way D-sub Connector Plug, Разъем

Deutsch DRC26 Series Heavy Duty Connectors

Deutsch DRC26 Series is a fully enviromentally sealed high density PCB connector, ideally suited for use within engine control systems, electronic panels. The DRC26 series connector incorporates silicon seals and its rugged thermosplastic connector housing can withstand high temperature ranges as well as offering excellent environmental protection.

High density Connector pin counts
Crimp type nickel plated solid copper alloy contacts
Stainless steel standoff
Silicone rubber seals
Size 20 terminals
ARC resistance 130 secs per ASTM D-495

Note

For suitable contacts see 425-822 and for suitable crimp too see 425-973 and for sealing grommets size 20 see 425-434

Deutsch DRC Series Heavy Duty Connectors

Deutsch DRC Series is a fully enviromentally sealed high density connector family, ideally suited for use within engine control systems, traction controls, ABS systems and electronic panels.
