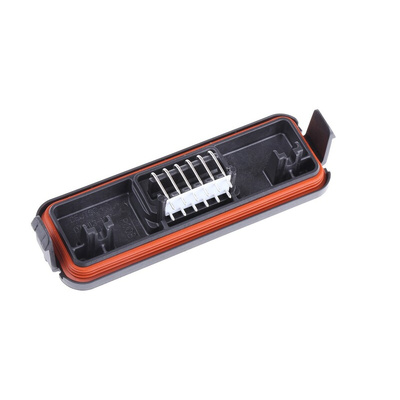

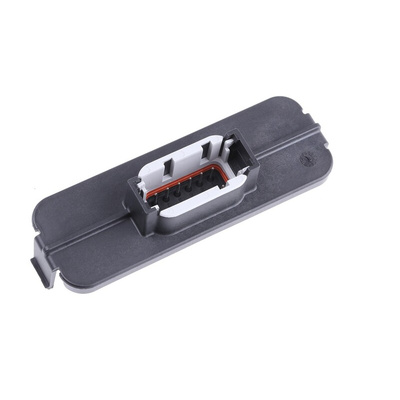

DTM13-12PA-R008, Deutsch, DTM Automotive Connector 12 Way, Solder Termination

Deutsch DTM13 Series PCB Connectors Headers

DTM13 series PCB header connectors are ideal for heavy duty rated electronic sensor and small module automotive connector applications and can be assembled into the DTM series range of PCB enclosures. The DTM13 feature 90 degree pins which are of solid copper alloy. The DTM13 series mates with the Deutsch DTM06 series connector plugs.

Rugged thermoplastic connector housing
Operating temp range -55 to +125 deg c
Tin plated copper alloy contacts
Size 20 contacts 7.5A

Note

For suitable enclosures see 724-2551 and range, for DTM06 type connector plugs see 724-2302 and range.

Deutsch DTM13 Series PCB Connector Headers

DTM13 series PCB header connectors are ideal for heavy duty rated electronic sensor and small module automotive connector applications.

DTM13-12PX-R008_Drawing

DTM13-12PA-R008.datasheet
