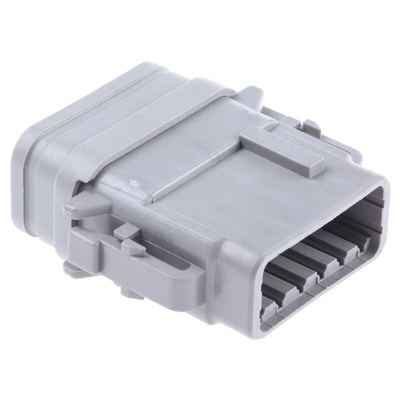

DTM0612SA-E007, Deutsch, DTM Automotive Connector Plug 12 Way, Crimp Termination

DTM Series Plug with A Keying

Deutsch DTM Series connectors are ideal for transport and other harsh environment signal connector applications. THey are often used in engine compartments and transmission tunnels. The DTM series features a smaller contact and enhanced design in comparison to the DT series connector.

Features and Benefits

• A keyed Connector
• Tactile and audible connector mating
• Rugged thermoplastic connector housing
• Hand insertable/removable contacts
• Operating temperature range: -55 → +125 °C
• Dielecric withstand voltage 1500 V ac
• Nickel plated copper alloy contacts (available separately)
• Positive contact retention
• Suitable for Size 20 Contacts

Available in this Range

• Stock No.724-2576 is a is an A-Keyed 12 way Plug Housing for Socket Contacts
• Stock No.724-2582 is a is an A-Keyed 12 way Plug Housing for Socket Contacts with Boot Adaptor
• Stock No.915-6571 is a is an A-Keyed 12 way Plug Housing for Socket Contacts

Deutsch DT Series Connectors

Deutsch DT series connectors are ideally suited for applications that require a secure reliable connector in harsh environments such as under-the-hood, transmission tunnels and many others areas that require secure connections in both power and signal.
