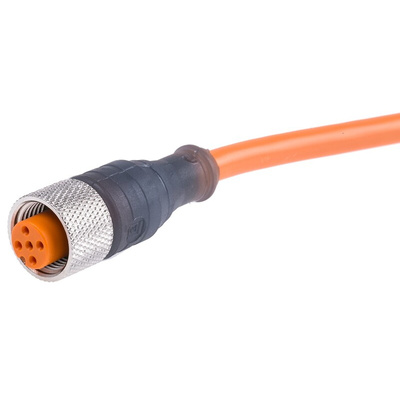

11381 RKT 5-56/2 M, Lumberg Automation Straight Female 5 way M12 to Unterminated Sensor Actuator Cable, 2m, Кабельная сборка

M12 Connector, RKT Series, Actuator - Sensor Cord set, 2m

RKT series M12 connectors feature an industry standard 3, 4 or 5 pole female connector, with threaded lock nut and straight configuration. Cord sets are available in a variety of lengths and cable materials to suit a wide range of connector applications and environments. RKT series M12 actuator - sensor connectors are especially suitable for connecting optoelectronic sensors or safety switches typically found on safety door devices, systems and distribution boxes and have an open cable end, which ensures a high degree of wiring flexibility.

Connector body material TPU
Connector IP67 rated when mated
O ring material FKM
Knurled Nut CuZn nickel plated
Contact material CuZn pre-nickeled 0.3 Micron gold plated
Temperature range -25 → +80 ° C

Note

3 pole (4 poles but 1 not connected) cord set are wired (1-4) brown, no colour, blue and black.
4 pole: brown, white, blue and black.
5 pole: brown, white, blue, black, green/yellow.

Belden Lumberg Automation Straight Female M12 To Free-End Cord Set, 5 Contacts, 2m Length - RKT Series - 11381 RKT 5-56/2 M

Looking for a robust sensor cable? Try this single-ended cord set from Belden's Lumberg Automation range. Its female M12 connector is made from durable TPU that resists oils, grease and above-average impact. The cable's PVC outer jacket is immune to the ageing effects of weathering for longevity in harsh conditions. This material also provides insulation, so protects you against electric shocks. A generous length of 2m means you can use this assembly in larger workplaces.

Features & Benefits

• FKM O-ring that withstands chemicals, heat and oxidation
• IP67-rated connection when correctly mated that's dust-tight and water-resistant
• Current rating of 5A, so suitable for higher-powered applications

Applications

• Petrochemical industry
• Warehouses and storage facilities
• Food and beverage processing

Is this connector self-locking?

Yes, for ease of assembly and peace of mind, this connector is self-locking.
