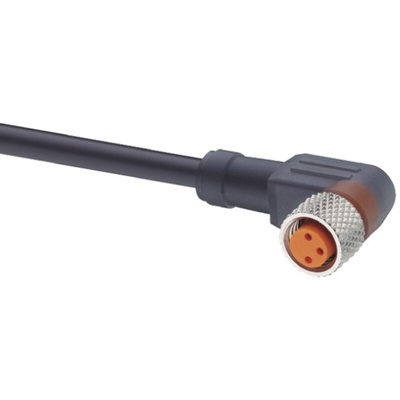

11337 RKMWV/LED A 3-06/5 M, Lumberg Automation Right Angle Female 3 way M8 to Unterminated Sensor Actuator Cable, 5m, Кабельная сборка

M8 Connector, RKMWV Series with LED, 90 Degree Actuator - Sensor Cord set

RKMWV series M8 connectors with LED feature an industry standard 3 pole female connector single ended 3 wire cord set, coloured (1-3) brown, blue and black a threaded lock nut for secure connectivity, internal O ring for improved IP protection and 90 degree configuration. RKMWV series M8 actuator - sensor connectors are especially suitable for connecting optoelectronic sensors or safety switches typically found on safety door devices, systems and distribution boxes and have an open cable end, which ensures a high degree of wiring flexibility.

Connector body material TPU
Connector IP67/69K rated when mated
O ring material FKM
LED function indicator
Knurled Nut CuZn nickel plated
Contact material CuZn pre-nickeled 0.8 Micron gold plated
Temperature range -40 → +90 ° C

Belden Lumberg Automation Sensor Actuator Cable, 30V DC Voltage Rating, 5mm Outer Diameter - 11337 RKMWV/LED A 3-06/5 M

Want to boost connectivity in your signalling system? Loop in this Belden Lumberg Automation sensor actuator cable. One end is unterminated, so you can attach an adapter of your choice or wire it to your equipment. At the other end, there's a widely compatible M8 socket that works with standard gear. It has gold-plated bronze pins to resist corrosion and a right-angled orientation to minimise wire strain. LED indicators are on hand to clearly show the cable's connection status, making inspections hassle-free.

Features & Benefits

• Coupling nut to secure connection against movement
• 5m length gives you substantial reach
• Withstands up to 100 mating cycles for a long service life and handy reusability

Applications

• Logistics industry
• Workshops
• Metalworking

Can I install this connector in my wet application?

Yes, this cable's IP67 rating shows it's protected against temporary water submersion, so it does its job in wet conditions.

CrossReference_Hirschmann to Lumberg

Female angled connector M8 with LED Data Sheet
