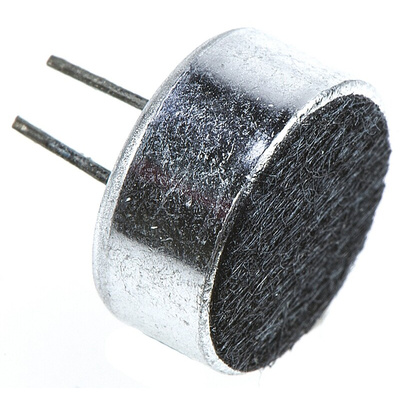

RS PRO Omni-Directional, Through Hole 9.7mm Microphone Condenser -41dB

RS PRO Omni-Directional 9.7 mm Microphone Condenser -41 dB

Boost the quality of your recorded sound with this omni-directional microphone condenser element from RS PRO. You simply slot the component into place inside your device. It's often found in home and commercial recording studios. This microphone condenser picks up with equal strength whether you're in front, behind or to one side of the mic.
You'll be able to pick up sounds indoors or outside, as this microphone condenser element works in conditions ranging from -20°C to +70°C. It's suitable for capturing even very subtle sounds thanks to its -41 dB sensitivity. For versatility, this component can work from a direct current or a radio frequency. This product is suitable for recording singing and musical instruments.

Features and Benefits

• Dimensions of 9.7 (diameter) x 4.5 mm
• Omni-directional directivity
• Height of 5 mm
• Maximum frequency of 16 kHz
• Maximum operating temperature of +70°C
• Maximum supply current of 0.5 mA
• Minimum frequency of 50 Hz
• Minimum operating temperature of -20°C
• Output impedance of 2.2 kΩ
• Sensitivity of -41 dB
• Signal to noise ratio of 60 dB
• Standard operating voltage of 1.5 V

RS Pro Datasheet
