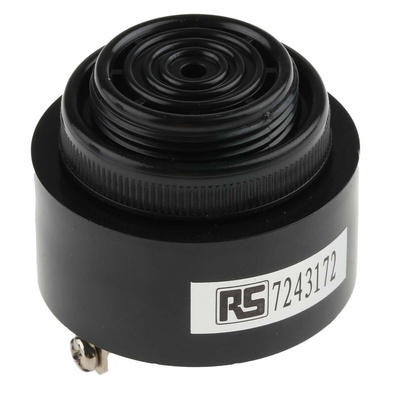

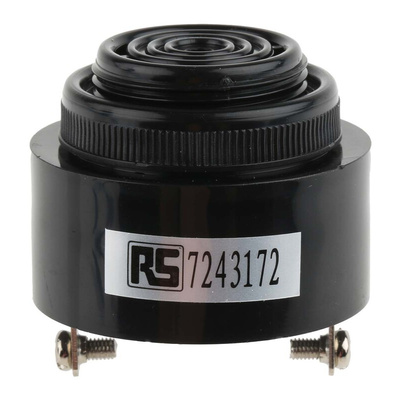

RS PRO 97dB Panel Mount Continuous Internal Piezo Buzzer, 43 (Dia.) x 20mm, 4V dc Min, 28V dc Max

7243172
Производитель: RS PRO
Цена за шт.
3580.20 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Panel hole mount continuous tone buzzer screw terminals

Compact size panel mounting
Continuous tone buzzers

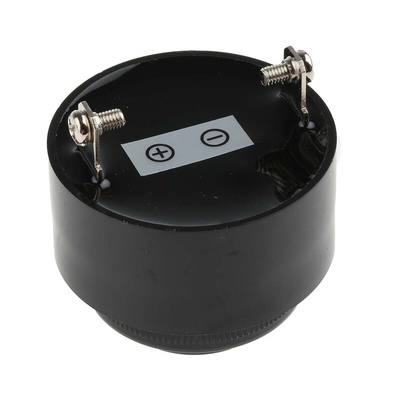

Screw terminal connectors

RS PRO 97 dB, Panel-mount Continuous Internal Buzzer

These versatile piezo buzzers offer a broad voltage range, a loud and continuous tone as well as low power consumption. As part of our tried-and-tested RS PRO series, they emit a crisp and clear sound.

The buzzers draw only an 8 mA current and operate at between 4 V DC and 28 V DC. As a result, they're very energy efficient and compatible with most consumer appliances. With a continuous 97 dB tone, they can be heard clearly from a distance – even in noisy conditions. The buzzers are simple to install, as they're simply panel mounted. Thanks to their handy screw terminals, wires can be connected to them without the need for soldering.

These are well-suited for use as alarms and warning devices, conforming to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic control standards. With their loud and continuous tone, these are the perfect choice for noisy offices or factory floors.

Features and Benefits

• Panel mounting
• Supply voltage range of 4 V DC to 28 V DC
• 97 dB sound level
• Internal drive
• Diameter of 43 mm
• Height of 20 mm
• Operating temperature range of -20°C to +60°C
• Supply current of 8 mA
• Minimum frequency of 2.3 kHz
• Maximum frequency of 3.3 kHz

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Техническая спецификация
pdfRS PRO Datasheet
pdfRS PRO Datasheet
Высота:
20мм
Диаметр:
43мм
Максимальная частота:
3.3кГц
Максимальное напряжение питания:
28В пост. тока
Минимальная частота:
2300Гц
Минимальное напряжение питания:
4В пост. тока
Рабочая температура - максимальная:
+60°C
Рабочая температура - минимальная:
-20°C
Размеры:
43 (диаметр) x 20мм
Тип монтажа:
Крепление на панель
Тип привода:
Внутренний
Тип сигнала:
Continuous
Ток питания:
8мА
Уровень звучания:
97дБ
