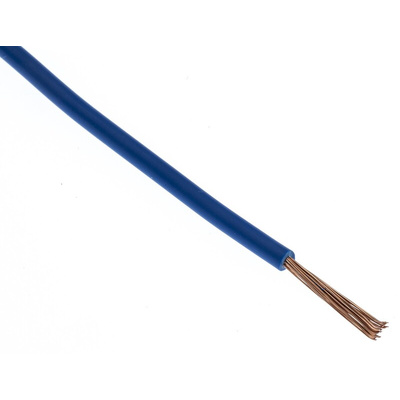

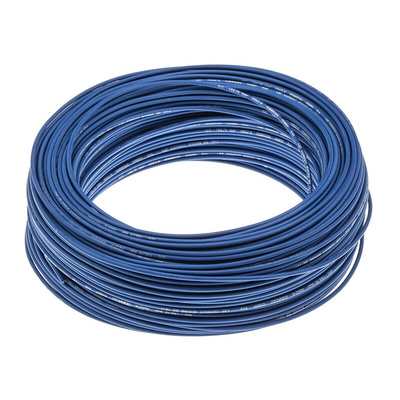

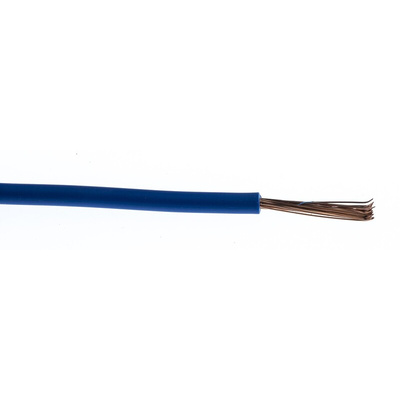

4160114, Lapp MULTI-STANDARD SC 2.1 Series Blue 0.5 mm² Hook Up Wire, 22 AWG, 100m, PVC Insulation

Lapp Multi Standard Panel Wire SC 2.1

From Lapp, this MULTI-STANDARD single-core cable is ideal for power and control applications. With fine-wire strands of tinned-copper and a PVC based insulation, the wire is designed for use in control cabinets. It is also suitable for installation in suitable trunking and conduits.

At room temperature, the wire is widely resistant to oils, and is ideal for wiring in industrial machines and equipment in accordance with NFPA 79.

The wire conforms to various recognised standards, and is UL-listed (MTW) for use in the USA, CSA (TEW) rated for use in Canada and HAR (VDE) rated for use in Europe.

Features and Benefits

• Flexible and versatile wire
• Oil-resistant
• Flame-retardant according IEC 60332-1-2 and UL VW1 / CSA FT1
• Maximum Operating Temperature 90°C (105°C for 15,000 hours) to BS6231
• UL-listed (MTW)
• CSA (TEW)
• H07V-K

Applications

Lapp MULTI-STANDARD wire is highly versatile and often used in applications such as;

• Field Wiring
• Internal wiring of devices
• Control cabinet wiring
• Automation and Process Control

Accessories

For proper termination and management in control cabinets, panels and conduit, this wire can be used with cable accessories and Lapp cable glands. For example, the easy-fit SKINTOP CLICK range of cable glands can accommodate various wire gauges.

• 104-004 is a grey M16 SKINTOP CLICK Cable Gland for 4.5 mm to 10 mm wire diameters
• 104-010 is a grey M20 SKINTOP CLICK Cable Gland for 7 mm to 13 mm wire diameters
• 103-994 is a grey M25 SKINTOP CLICK Cable Gland for 9 mm to 17 mm wire diameters
• 560-707 is a grey M12 SKINTOP CLICK Cable Gland for 3 mm to 7 mm wire diameters
• 560-688 is a black M32 SKINTOP CLICK Cable Gland for 11 mm to 21 mm wire diameters

Standards

, IEC 60332-1-2, UL VW1/CSA FT1

LAPP Hook Up Wire, Tinned Copper Conductor Material, 750V AC Voltage Rating - 4160114

Need a reliable cable for signal transmission? Route this LAPP hook up wire into your setup. Its tinned copper wires are highly conductive and resistant to corrosion, so you can count on a stable connection. Thanks to its PVC insulation, the product holds its own against wear and abrasion while providing protection against electrical hazards.

Features & Benefits

• Voltage rating of 750V AC means it's the right choice for medium-voltage applications
• Minimum bend radius of four times its outer diameter makes it fit for installation around corners

Applications

• Robotics and automation
• Research laboratories
• Assembly lines

Can I use this hook up wire in extreme temperatures?

Yes, this component operates reliably in challenging industrial conditions, thanks to its wide operating temperature range between -40°C and +70°C.
