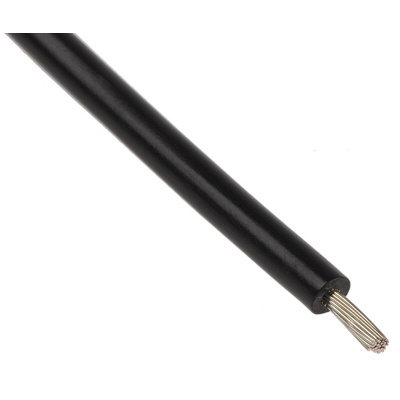

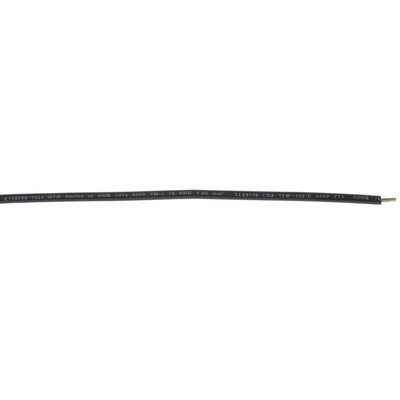

4160301, Lapp Black 1 mm² Hook Up Wire, 17 AWG, 100m, PVC Insulation

LAPP Black Hookup Wire, 100m Length, 1mm² CSA - 4160301

Complete your internal wiring jobs with this hookup cable from LAPP. Its tinned copper conductor material combines conductivity with corrosion resistance, giving you secure electrical connections even in humid conditions. As the protective PVC sheath is flame-retardant and oil-resistant, you can rely on this cable in heavy-duty environments. With a voltage rating of 600V, it's a versatile choice for both commercial and light industrial applications.

Features & Benefits

• Outer diameter of 2.9mm to easily fit into smaller devices
• Stranded conductor core conforms to the shape of your application without any loss of conductivity
• Operating temperature range between -40°C and +70°C, for use in harsh industrial conditions

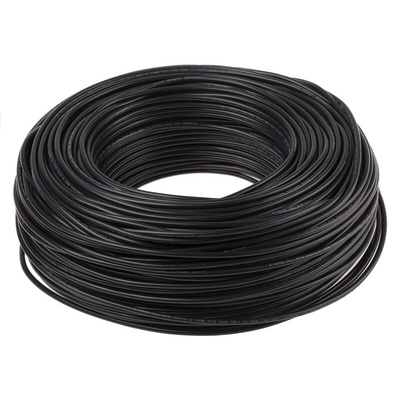

• Supplied as a 100m length reel for tidy storage and easy handling

Applications

• Mobile and portable equipment
• Building wiring systems
• Automotive industry

What are conductor cores and how do they affect my wiring?

Conductor cores refer to how many electrical contacts a cable contains. A single-core cable like this one has one piece of conductive metal running through it. A wire's cores can be either solid or stranded. This wire has a stranded core, meaning it's more flexible than a solid core cable.
