4510011, Lapp Black, 0.5 mm² Hook Up Wire, 100m, Кабель

7244314
Номер производителя: 4510011Производитель: Lapp
Цена за 1 катушку (100 метров)
6717.00 руб. (С НДС) *
Количество 25+ 50+
Цена 6609.00 руб. 6273.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

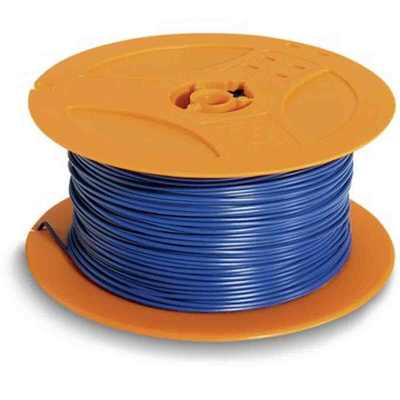

Lapp Single Core Cable - H05V-K

From Lapp, this single-core H05V-K hook-up wire is ideal for fixed installations in power and control applications. The cable features a fine-wired copper conductor with PVC based core insulation, and is flame retardant.

The H05V-K hook-up wire has European HAR cable type certification.

Features and Benefits

• Bare copper wire conductor according to VDE 0295 class 5; HD 383 S2
• Nominal working voltage 300/500V
• Minimum bending radius 6 x cable diameter
• Flame-retardant according to IEC 60332-1-2
• Operating Temperature when Fixed: -40°C to +80°C

Applications

These versatile hook-up wires are typically used in the internal wiring of devices, or for protected installations in and on lighting equipment. This hook-up wire is often used in the following applications:

• Power Management
• Industrial Machinery
• Medical Equipment

Frequently Asked Questions

Can this wire be used outdoors?

Wires are designed to be used in indoor systems, however, the wide temperature operation resistance may allow for a short period of time outdoor operation.

Which wire types are a better choice, stranded or solid?

Both stranded and solid wire have the same resistance properties but stranded wire guarantee an extra flexibility, resistance to bending and are generally easier to install than solid cables.

Note

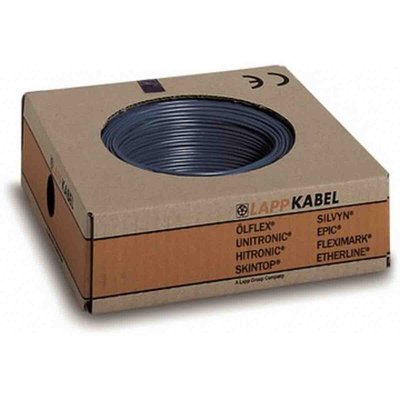

These are supplied in boxes not reels.

Standards

EN 50525-2-31, IEC 60332-1-2

Техническая спецификация
pdfDatasheet
pdfCables Selection Guide
Американский размер проводов:
20 AWG
Внешний диаметр:
2.1мм
Гармонизированный код:
H05V-K
Длина:
100м
Жилы:
16/32 mm
Материал изоляции:
ПВХ
Материал проводника:
Медь
Номинальное напряжение:
500 В
Площадь поперечного сечения:
0.5 мм²
Рабочая температура - максимальная:
+80°C
Рабочая температура - минимальная:
-30°C
Цвет оболочки:
Черный
