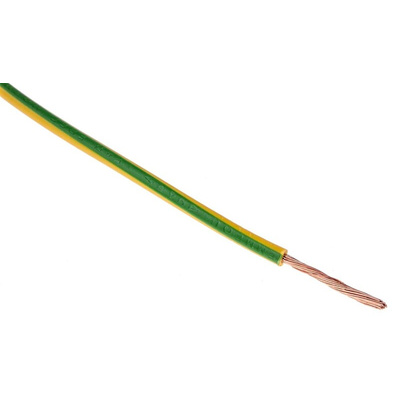

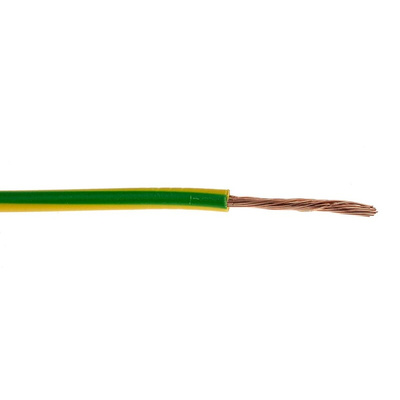

4510003, Lapp ÖLFLEX® H05V-K Series Green/Yellow 1 mm² Hook Up Wire, 18 AWG, 32/32, 100m, PVC Insulation, Кабель

Lapp Single Core Cable - H05V-K

From Lapp, this single-core H05V-K hook-up wire is ideal for fixed installations in power and control applications. The cable features a fine-wired copper conductor with PVC based core insulation, and is flame retardant.

The H05V-K hook-up wire has European HAR cable type certification.

Features and Benefits

• Bare copper wire conductor according to VDE 0295 class 5; HD 383 S2
• Nominal working voltage 300/500V
• Minimum bending radius 6 x cable diameter
• Flame-retardant according to IEC 60332-1-2
• Operating Temperature when Fixed: -40°C to +80°C

Applications

These versatile hook-up wires are typically used in the internal wiring of devices, or for protected installations in and on lighting equipment. This hook-up wire is often used in the following applications:

• Power Management
• Industrial Machinery
• Medical Equipment

Frequently Asked Questions

Can this wire be used outdoors?

Wires are designed to be used in indoor systems, however, the wide temperature operation resistance may allow for a short period of time outdoor operation.

Which wire types are a better choice, stranded or solid?

Both stranded and solid wire have the same resistance properties but stranded wire guarantee an extra flexibility, resistance to bending and are generally easier to install than solid cables.

Note

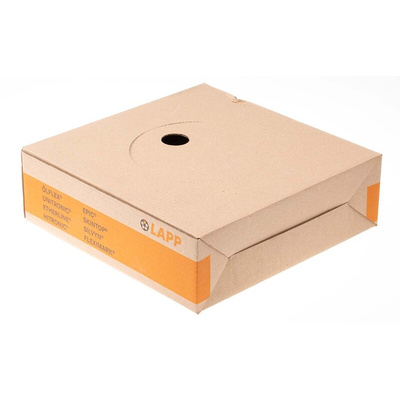

These are supplied in boxes not reels.

Standards

EN 50525-2-31, IEC 60332-1-2

LAPP Hook Up Wire, 500V Voltage Rating, 2000V Test Voltage - ÖLFLEXH05V-K Series - 4510003

Looking for reliable wiring to channel your electrical current? Choose this hook up wire from LAPP. Its bare copper conductor sends signals across at lightning speeds for near-instant reactions. A corrosion-resistant PVC sheath means your connection stays well-insulated, even in challenging conditions. Thanks to the thin 18AWG size, routing this product through equipment such as motors and switchboards is a breeze. 100m of wire conveniently supplied on a reel keeps you well-supplied for multiple applications.

Features & Benefits

• Performs in demanding operating temperatures between -30°C and +80°C to suit challenging conditions
• 32 intertwined strands stick together to ensure signals get where they're going
• Green and yellow jacket is easy to identify in busy cable setups

Applications

• HVAC systems
• Data centres
• Commercial lightning networks
• Manufacturing industry

How does this hook up wire behave in a fire?

It's flame-retardant according to IEC 60332-1-2 standards, meaning it's self-extinguishing to stop fire from spreading.
