4520141, Lapp ÖLFLEX® Series Dark Blue 1.5 mm² Hook Up Wire, 15 AWG, 30/30, 100m, PVC Insulation, Кабель

Lapp Single Core Cable - H07V-K

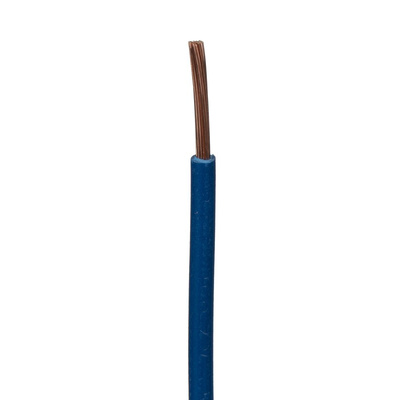

From Lapp, this H07V-K harmonised single-core wire is ideal for power and control applications. The cable consists of a fine-wired copper conductor of bare copper strands with a flame-retardant PVC insulation.

The wire features a mark for recognized suitability when used in European equipment and machinery.

Features and Benefits

• Flexible and Versatile Hook Up Wire
• HAR certification
• Flame-retardant according IEC 60332-1-2
• Operating Temperature when Fixed: -40°C to +80°C
• Bare copper wire conductor according to VDE 0295 class 5; HD 383 S2

Applications
This flame retardant hook-up wire is ideal for wiring in devices and control cabinets, and as such is often used in a variety of applications, such as;

• Power Management
• Industrial Machinery
• Medical Equipment

The H07V-K cables are able to be used in closed installation ducts, and in pipes and tubing even when encased in plaster. These cables may not be used for direct laying on racks, troughs and tubes.

Frequently Asked Questions

Can this wire be used outdoors?

Wires are designed to be used in indoor systems, however, the wide temperature operation resistance may allow for a short period of time outdoor operation.

Which wire types are a better choice, stranded or solid?

Both stranded and solid wire have the same resistance properties but stranded wire guarantee an extra flexibility, resistance to bending and are generally easier to install than solid cables.

LAPP Hook Up Wire, 22kg/km Weight, 2500V Test Voltage - ÖLFLEX Series - 4520141

Bridge the gap between parts of your industrial equipment with this hook up wire from LAPP. Its bare copper wires are highly conductive to ensure a reliable connection. For improved workplace safety, the unit's PVC insulation stands up to impact and wear and provides protection from electric shock. Thanks to a minimum bend radius of four times its outer diameter, you'll have no problems routing it around corners.

Features & Benefits

• Safe for use in challenging settings, thanks to a broad operating temperature range between -30°C and +80°C
• Comes on a 100m reel, so you get enough for large-scale projects

Applications

• Medical equipment
• Consumer electronics
• Process and packaging plants

Does this cable withstand surge voltages?

Yes. It has a test voltage of 2500V, so it holds its own in the event of an unexpected voltage spike.

H05V-K and H07V-K Data Sheet

Cable Selection Guide
