4520032, Lapp ÖLFLEX® H07V-K Series Brown 2.5 mm² Hook Up Wire, 14 AWG, 50/30, 100m, PVC Insulation, Кабель

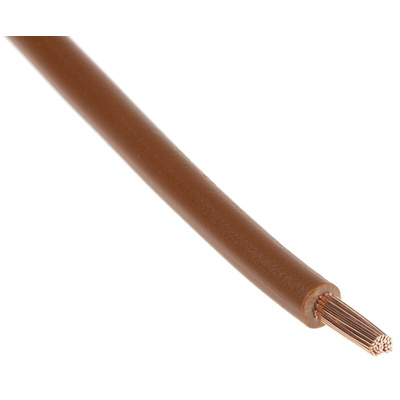

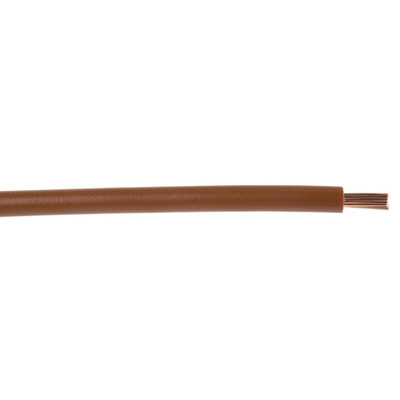

Lapp Single Core Cable - H07V-K

From Lapp, this H07V-K harmonised single-core wire is ideal for power and control applications. The cable consists of a fine-wired copper conductor of bare copper strands with a flame-retardant PVC insulation.

The wire features a mark for recognized suitability when used in European equipment and machinery.

Features and Benefits

• Flexible and Versatile Hook Up Wire
• HAR certification
• Flame-retardant according IEC 60332-1-2
• Operating Temperature when Fixed: -40°C to +80°C
• Bare copper wire conductor according to VDE 0295 class 5; HD 383 S2

Applications
This flame retardant hook-up wire is ideal for wiring in devices and control cabinets, and as such is often used in a variety of applications, such as;

• Power Management
• Industrial Machinery
• Medical Equipment

The H07V-K cables are able to be used in closed installation ducts, and in pipes and tubing even when encased in plaster. These cables may not be used for direct laying on racks, troughs and tubes.

Frequently Asked Questions

Can this wire be used outdoors?

Wires are designed to be used in indoor systems, however, the wide temperature operation resistance may allow for a short period of time outdoor operation.

Which wire types are a better choice, stranded or solid?

Both stranded and solid wire have the same resistance properties but stranded wire guarantee an extra flexibility, resistance to bending and are generally easier to install than solid cables.

LAPP Hook Up Wire, 3.7mm Outer Diameter, 2500V Test Voltage - ÖLFLEX H07V-K Series - 4520032

Need a cable capable of carrying heavy loads with ease? Choose this hook up wire from LAPP. Its high 750V voltage rating makes it ideal for use in heavy-duty machinery. The bare copper wires send transmissions across in a snap for near-instant responses. Thanks to PVC insulation, the unit resists corrosion for ongoing performance you can bank on. And with fire-resistant properties, this wire won't contribute to the spread of flames.

Features & Benefits

• Performs with ease in operating temperatures between -30°C and +80°C

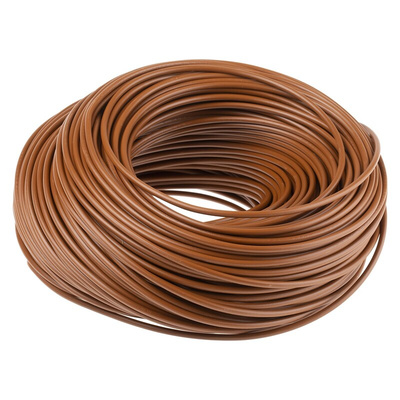

• 100m supplied on a spool for convenient use
• Tight 7.4mm bending radius suits installation in dense fixed wire arrangements
• Brown sheath to blend into industrial settings

Applications

• Control systems
• Hospitals and medical centres
• Machine building
• Switchboards

What environments can I install this cable in?

You can install this versatile cable in containers like tubes or installation ducts, left exposed or buried in plaster.

Type H05V-K and H07V-K Data Sheet

Cable Selection Guide
