48001, Lapp ÖLFLEX HEAT Series Black 0.5 mm² Hook Up Wire, 20 AWG, 19/0.25 mm, 100m, Silicone Insulation, Провод

Olflex Heat 180 SiF

From Lapp, the OLFLEX HEAT is a single core cable with excellent temperature resistance. It features a silicone based insulation that makes it ideal for use in high temperature environments where conventional core insulation will brittle.

The cable has a flexible fine-wire conductor, and is halogen free, ensuring it is suitable for a wide range of applications. It also has resistance to oils, fats and chemical substances.

Features and Benefits

• Temperature Resistance
• Cold Resistance
• Resistance to some oils and chemical substances
• Halogen-free according to IEC 60754-1
• Corrosiveness of combustion gases according to IEC 60754-2
• Flame-retardant according IEC 60332-1-2
• Operating Temperature -50 °C to +180 °C (Adequate Ventilation Required)
• Minimum bending radius 6 x cable diameter for fixed applications

Applications

The Lapp OLFLEX HEAT 180 SiF cable is highly versatile, but its temperature resistance makes it particularly suited to;

• HVAC Systems
• Thermal and Heating Elements
• Furnace Construction
• Generator and Transformer Manufacturing
• Lighting Technology

Which wire types are a better choice, stranded or solid?

Both stranded and solid wire have the same resistance properties but stranded wire guarantee an extra flexibility, resistance to bending and are generally easier to install than solid cables.

Note

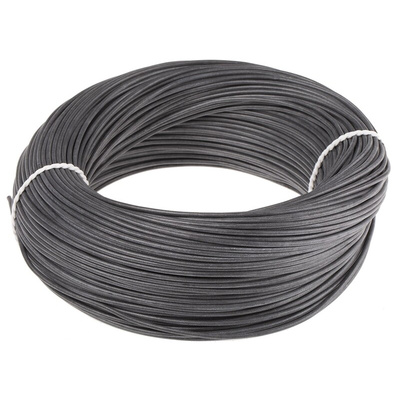

These are supplied coiled and shrink wrapped NOT on a reel.

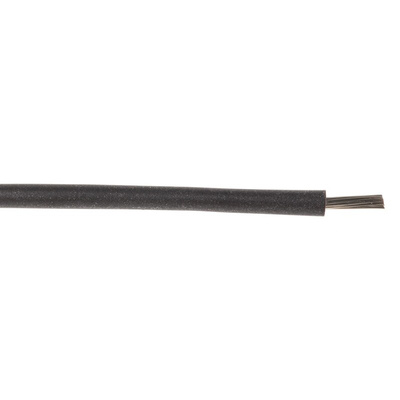

LAPP ÖLFLEX HEAT Series Hook Up Wire, Single Core, Copper - 48001

The LAPP hook up wire is a high-temperature single-core cable designed for use in various industries, such as automation, electronics, electrical, and mechanical. This copper conductor wire is insulated with silicone, making it durable and versatile. The hook up wire ensures reliable performance in challenging environments. With ECA certification and a voltage rating of 300V, this black-sheathed cable is resistant to chemicals and offers exceptional quality for industrial applications.

Features & Benefits

• Fine wire copper conductor for flexibility and efficient electrical conductivity
• Temperature-resistant silicone insulation for durability in high-temperature environments
• Halogen-free and flame-retardant properties for safety and compliance
• Resistant to chemicals and oils, ensuring longevity and reliability
• ECA certified cable for quality assurance
• Voltage rating of 300V for compatibility with various electrical systems

Applications

• Control cabinet manufacturing
• Electric motor industry
• Sauna/solarium construction
• Lighting technology
• Furnace construction

Can it withstand high temperatures?

Yes, the Lapp hook up wire is designed for temperatures up to +180°C, making it ideal for challenging industrial environments.

Will it resist chemicals and oils?

Yes, the cable is resistant to chemicals and oils, ensuring long-lasting performance in harsh conditions.

Is it suitable for control cabinet manufacturing?

Yes, the wire is perfect for control cabinet manufacturing due to its temperature resistance and high-quality construction.
