50104, Lapp ÖLFLEX HEAT Series Red 1 mm² Hook Up Wire, 17 AWG, 19/0.25 mm, 100m, Silicone Insulation, Провод

Olflex Heat 180 SiF

From Lapp, the OLFLEX HEAT is a single core cable with excellent temperature resistance. It features a silicone based insulation that makes it ideal for use in high temperature environments where conventional core insulation will brittle.

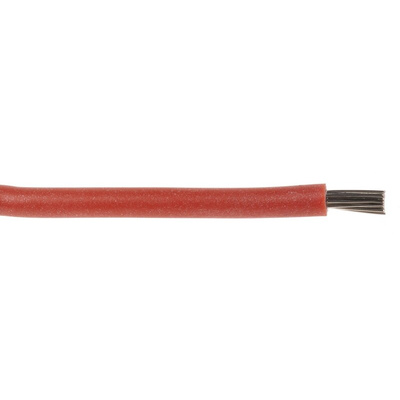

The cable has a flexible fine-wire conductor, and is halogen free, ensuring it is suitable for a wide range of applications. It also has resistance to oils, fats and chemical substances.

Features and Benefits

• Temperature Resistance
• Cold Resistance
• Resistance to some oils and chemical substances
• Halogen-free according to IEC 60754-1
• Corrosiveness of combustion gases according to IEC 60754-2
• Flame-retardant according IEC 60332-1-2
• Operating Temperature -50 °C to +180 °C (Adequate Ventilation Required)
• Minimum bending radius 6 x cable diameter for fixed applications

Applications

The Lapp OLFLEX HEAT 180 SiF cable is highly versatile, but its temperature resistance makes it particularly suited to;

• HVAC Systems
• Thermal and Heating Elements
• Furnace Construction
• Generator and Transformer Manufacturing
• Lighting Technology

Which wire types are a better choice, stranded or solid?

Both stranded and solid wire have the same resistance properties but stranded wire guarantee an extra flexibility, resistance to bending and are generally easier to install than solid cables.

Note

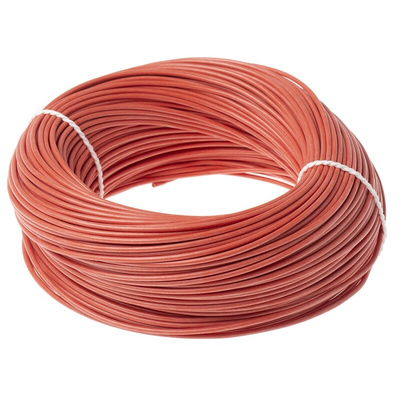

These are supplied coiled and shrink wrapped NOT on a reel.

LAPP ÖLFLEX HEAT Series Hook Up Wire, Single Core, Copper - 50104

The LAPP hook up wire is a high-quality single-core cable designed for use in the automation, electronics, electrical, and mechanical industries. With features like high-temperature resistance, silicone insulation, and a copper conductor, this wire meets the demands of various applications. The red sheath ensure durability and reliability, making it a top choice in the industry.

Features & Benefits

• High-temperature resistance up to +180°C
• Copper conductor for excellent conductivity
• Silicone insulation for flexibility and protection
• 17 AWG size for optimal performance
• Red sheath for easy identification
• 1 mm² cross-sectional area for efficient power transmission
• Chemical and oil-resistant for versatile applications
• CPR certification for safety compliance

Applications

• Control cabinet manufacturing
• Appliances and apparatus engineering
• Electric motor industry
• Sauna/solarium construction
• Thermal and heating elements
• Lighting technology
• Ventilator engineering
• Air-conditioning technology
• Furnace construction
• Polymer processing
• Generator and transformer manufacturing

Can it withstand high temperatures?

Yes, the wire is designed to operate at temperatures up to +180°C.

Is it resistant to chemicals and oils?

Yes, the wire is resistant to a wide range of chemicals and oils for versatile applications.

Will it maintain flexibility in extreme conditions?

The silicone insulation provides flexibility even in challenging environments.

Can it be used in control cabinet manufacturing?

Yes, it is suitable for use in control cabinets and various other applications within industrial settings.

Is it halogen-free?

Yes, the wire is halogen-free according to IEC standards.
